Part Number(s)
Standard Model:
Black – E389883
White – E411266 (MTO)
Value Model:
Black – E390647
White – E411643 (MTO)
Enclosure Color

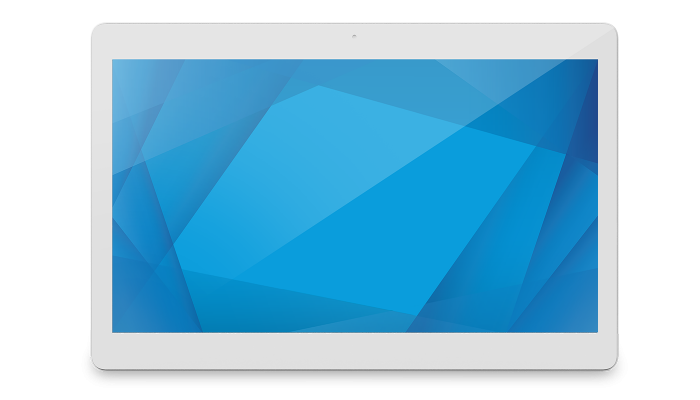

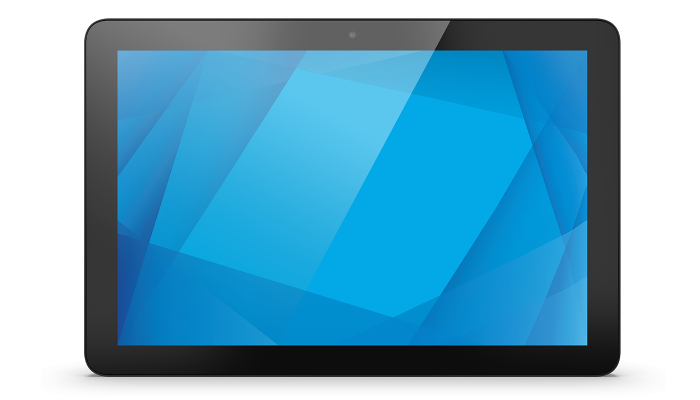

White or Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Touch Thru
Supports up to 6mm / 0.24″ glass or 3mm / 0.12″ plastic with up to 2 touches
Processor
Standard Model: Qualcomm Snapdragon SDA660
Value Model: Rockchip RK3399
Memory (RAM)
4GB
Storage
Standard Model: 64GB
Value Model: 32GB
OS

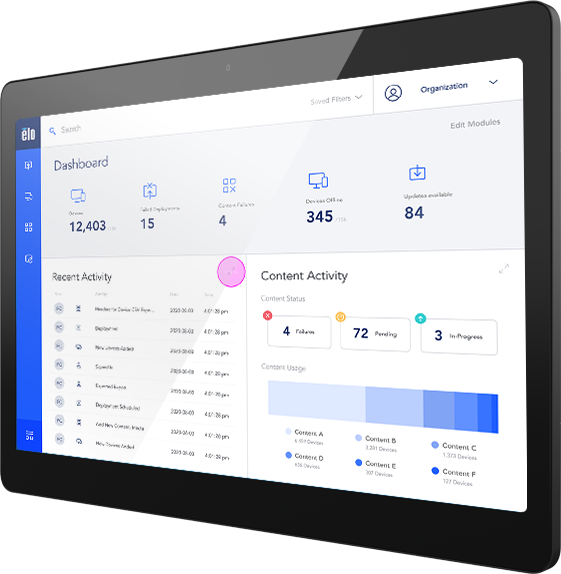

Android 10 with Google Play Services and EloView content deployment and management
Diagonal Size
10.1” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:10
Active Area (mm)
8.54″ x 5.34″ / 217 mm x 136 mm
Resolution
Standard Model: 1920 x 1200 @ 60Hz
Value Model: 1280 x 800 @ 60Hz
Number of Colors
8-bit (16.7 million)
Brightness (typical)
Standard Model:
LCD Panel: 450 nits
TouchPro PCAP: 387 nits
Value Model:
LCD Panel: 300 nits
TouchPro PCAP: 250 nits
Response Time-total (typical)
25 msec
Contrast Ratio
Standard Models: 900:1 / Value Models: 800:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports
1x USB 3.0 support (900mA)
Type C USB output
Micro SD slot
GPIO
Ethernet 1x LAN (Gigabit)
DC in
Peripheral Mounting
4x micro-USB 2.0 Elo Edge Connect ports
Support for 1.2A on one port and 500mA for the remaining three ports
Webcam
Standard Model: 8MP, Max Resolution: 1920×1080 30fps, Auto Focus, Focus Range: >10cm
Value Model: 5MP, Max Resolution: 1920×1080 30fps, Auto Focus
Wireless
802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports
Standard Model: 2x built-in Digital Microphones
Value Model: 1x built-in Analog Microphone
Speakers
Standard Model: 2x 0.8W
Value Model: 2x 2W
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
power adapter (included in accessory box)
Power Consumption (Typical)
Standard Model:
On: 8.5W
Off: 0.4W
Sleep: 4.5W
Value Model:
On: 7.2W
Off: 0.4W
Sleep: 3.4W
Power Over Ethernet (PoE)
Supported via Elo PoE Device PN: E413396
Reference the I-Series 4.0 user guide for details.
Dimensions
10.1″ x 6.8″ x 0.9″ / 252.9 mm x 169.0 mm x 22.1 mm
Shipping Box Dimensions
Standard Model: 12.4″ x 5.9″ x 8.8″ / 310 mm x 145 mm x 220 mm
Value Model: 12.4″ x 5.5″ x 9.0″ / 315 mm x 140 mm x 228 mm
Weight (Unpackaged)
Standard Model: 2.0 lbs / 0.9 kg
Value Model: 1.8 lbs / 0.8 kg
Weight (Packaged)
Standard Model: 4.5 lbs / 2.1 kg
Value Model: 4.9 lbs / 2.2 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%
Regulatory approvals and declarations
UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)
Supported Countries
Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock
lithium coin cell battery
Mounting Options

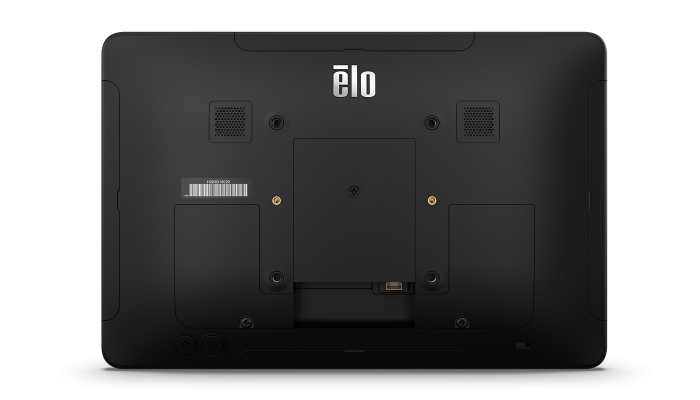

VESA 75mm
Warranty
2-year
Extended Service Options
3 year OS 360 – Elo P/N: E873133
5 year OS 360 – Elo P/N: E873326
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
3 year Warranty Coverage + ADP + OS 360 – Elo P/N: E130908
4 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131109
5 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131294
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
2 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132245
3 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132432
4 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132627
5 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132811
Sealability
Touchscreen sealed to LCD
What’s in the Box
I-Series 4
North American Power Cable
European Power Cable
1x Power Brick
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
NFC/RFID Reader – Elo P/N: E001004
Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (SE4720) – Elo P/N: E384627
2D Barcode Scanner (SE4107) – Elo P/N: E245047
POE Module Kit – Elo P/N: E413396
Status Light (Micro-USB Connectivity) – Elo P/N: E644767
Temperature Sensor Pro – Elo P/N: E534879
3D Camera – Elo P/N: E134699
Webcam – Elo P/N: E201494
Expansion Module – Elo P/N: E809509
Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Tabletop Flip Stand for 10” & 15” I-Series – Elo P/N: E924077
Tabletop Flip Stand for 10” & 15” I-Series – Elo P/N: E809321
Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) – Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) – Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) – Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
Elo Stand 1302L – Black – Elo P/N: E307788
Elo Stand 1302L – White – Elo P/N: E307974
65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
90W Replacement Cable Kit (NA & EU power cables and 90W power brick) – Elo P/N: E413579
