Part Number(s)
PCAP (Worldwide) – E155834
Non-Touch (Worldwide) – E324341
Enclosure Color
Black
Touch Technology & Capacity
Non-Touch
PCAP (Projected Capacitive) – 10 Touch
Diagonal Size
10.1” diagonal, Active matrix TFT LCD (LED)
Monitor Thickness
1.12″ / 28.45 mm panel depth
Aspect Ratio
16:10
Active Area (mm)
8.54″ x 5.34″ / 216.96 mm x 135.6 mm
Resolution
1280 x 800
Other Supported Resolutions
640 x 480 @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1920 x 1080 @ 60Hz
1920 x 1200 @ 60Hz
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors
262,000
Brightness (typical)
LCD panel: 350 nits
PCAP + DC Power: 315 nits
PCAP + USB-C 5V power: 200 nits
Response Time-total (typical)
29 msec
Contrast Ratio
800:1
Touch Interface
USB
Surface Treatment
Anti-glare
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
I/O Ports
1 x USB Type-C
1 x Audio jack (Line-in)
1 x VGA (Micro-HDMI female connecter)
1 x HDMI
1 x 12V D/C input
3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
Speakers
2 x 2W internal speakers
Video
Analog VGA
HDMI
USB Type-C
Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues
Input Video Frequency
Horizontal: 31.5 – 80 KHz
Vertical: 60 Hz
Power
Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A
Option 2: External DC Adapter 12V/36W in box
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical)
Monitor + AC/DC adapter
ON: 7.43 W
SLEEP: 1.26 W
OFF: 0.2 W
Monitor Dimensions (without Stand)
10.03″ x 6.99″ x 1.14″ / 254.80 mm x 177.50 mm x 29.00 mm
Shipping Box Dimensions
12.4″ x 9.57″ x 5.67″ / 315 mm x 243 mm x 144 mm
Weight (Unpackaged)
1.95 lbs / 0.8842 kg
Weight (Packaged)
4.02 lbs / 1.8266 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated

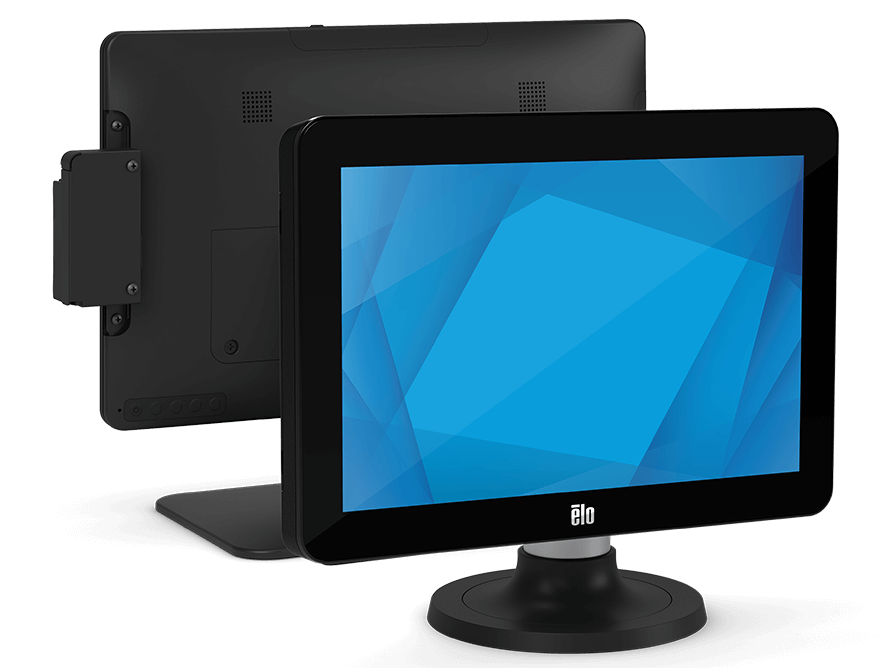

Mounting Options

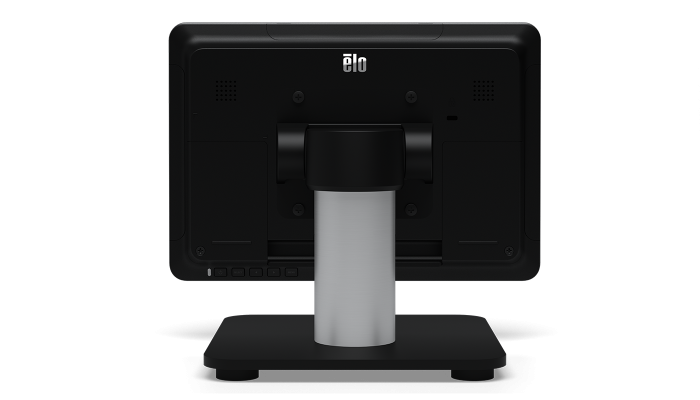

VESA 4-hole 75mm mounting interface on rear of unit

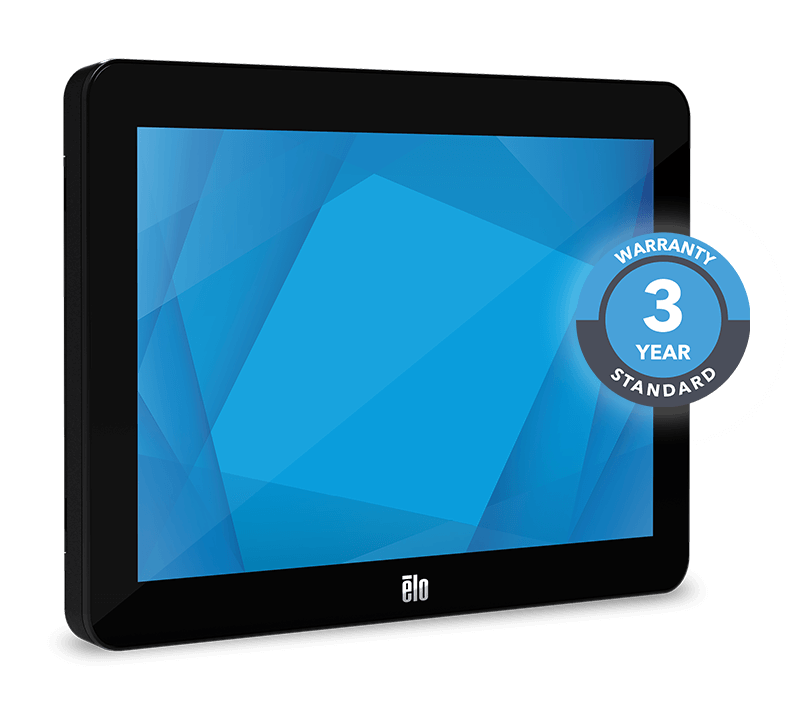

Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations
Canada cUL, IC
Europe CE
United Kingdom UKCA
Japan VCCI
United States UL, FCC
China CCC
Korea, KCC, e-standby
Australia RCM
Mexico NOM
Taiwan BSMI
International CB
RoHS, China RoHS, WEEE, REACH
India BIS
Russia EAC
Ingress Protection
IPX1 for front side
Impact Protection
IK05
What’s in the Box
Touchmonitor
HDMI cable
USB Cable (USB Type-A to Type-C)
Quick Install Guide
EEI Label
Power brick
NA Power cable
EU Power cable
2 x cable clamps
2 x tie wraps
3 x screws (M3x8mm) for cable clamps
2 x screws (M3x10mm) for cable doors
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
NFC/RFID Reader – Elo P/N: E001004
Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (SE4720) – Elo P/N: E384627
2D Barcode Scanner (SE4107) – Elo P/N: E245047
EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) – Elo P/N: E200465
EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) – Elo P/N: E201088
EMV Cradle for MagTek eDynamo – Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
Status Light (Micro-USB Connectivity) – Elo P/N: E644767
Temperature Sensor Pro – Elo P/N: E534879
3D Camera – Elo P/N: E134699
Webcam – Elo P/N: E201494
Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Short Tabletop Stand for 10” I-Series – Elo P/N: E160104
Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
Mounting Bracket for 0700L as Rear-Facing Display – Elo p/n: E332358
Pole Mount – 6 inch (75mm or 100mm VESA) – Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) – Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) – Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
Wallaby™ POS Stand (Black) – Elo P/N: E949536
Wallaby™ POS Stand (White) – Elo P/N: E353758
USB-C to USB-C Cable Kit – Elo P/N: E710364
VGA-DB15 to Micro Cable Kit – Elo P/N: E710549
DVI-D to HDMI Cable Kit – Elo P/N: E538507
1.8 m USB-C Cable Kit – Elo P/N: E408388
Elo Backpack® 4 (Value Model)- Elo P/N: E393754
Elo Backpack® 4 (Standard Model) – Elo P/N: E393359
