Part Number(s)
TouchPro PCAP (Worldwide) – E321195
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Touch Interface
USB 2.0
Diagonal Size
10.1” diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Aspect Ratio
16:10
Active Area (mm)
8.54″ x 5.34″/ 216.96mm x 135.6mm
Resolution
1280 x 800 at 60Hz
Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors
262,000
Brightness (typical)
LCD panel: 350 nits
TouchPro PCAP: 315 nits
Response Time-total (typical)
25 msec
Contrast Ratio
800:1
Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a – Supports later versions of Display Port video input
Input Video Frequency
Horizontal: 30 – 60 KHz
Vertical: 50 – 75 Hz
Video Interface
HDMI, VGA & Display Port
Power Supply
External DC – Optional power brick (sold separately)
Input power connector (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Voltage
12VDC +/- 5%
Adapter Output Power Connector
DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Power Consumption (Typical)
Monitor + Adapter at 230V/50Hz
ON: 6.1 W
SLEEP: 0.7 W
OFF: 0.5W
Dimensions
10.07″ x 7.03″ x 1.45″ / 255.8mm x 178.5mm x 36.9mm
Shipping Box Dimensions
13.23″ x 10.31″ x 6.89″ / 336mm x 262mm x 175mm
Weight (Unpackaged)
2.65 lbs / 1.2 kg
Weight (Packaged)
5.73 lbs / 2.6 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80% Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE

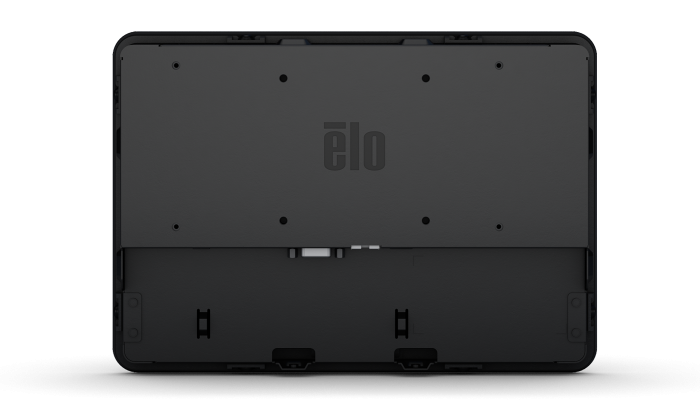

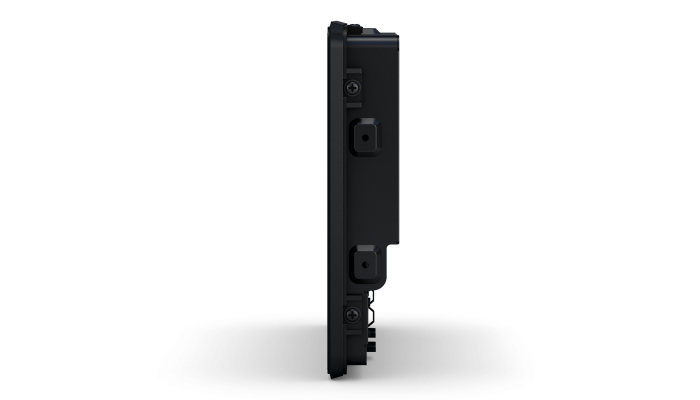

Mounting Options
75 mm VESA mount
Flush mount with included brackets
2-hole mounting interface on all 4 sides
See dimensional drawings for details
What’s in the Box
HDMI Cable
VGA Cable
Remote OSD
Flush Mount Brackets w/Screws (TouchPro PCAP Models)
Touch USB Cable
Quick Install Guide
EEI Label
Japan Class-B TM info sheet
Options / Peripherals / Upgrades
Elo Remote OSD (RJ45) – Elo P/N: E483757
Elo Backpack® – Elo P/N: E611864
Elo Backpack® 3.0 – Elo P/N: E901355
Replacement Cable Kit – Elo P/N: E546861
Cable Kit DVI-D to HDMI – Elo P/N: E538507
Cable Kit DP to DP – Elo P/N: E582895
North America power brick – Elo P/N: E005277
European & Korea power brick – Elo P/N: E571601
UK power brick – Elo P/N: E180092
China power brick – Elo P/N: E558862
Taiwan power brick – Elo P/N: E818655
Japan power brick – Elo P/N: E182546
Argentina power brick – Elo P/N: E887099
Australia power brick – Elo P/N: E637593
IntelliTouch Stylus Pen – Elo P/N: D82064-000
Elo 10-inch Flush-mount Bracket – Elo P/N: E511656
Power DC 24V/DC 12V Converter – Elo P/N: E239980
Optional PCAP Stylus Pen
E066148
