Part Number(s)

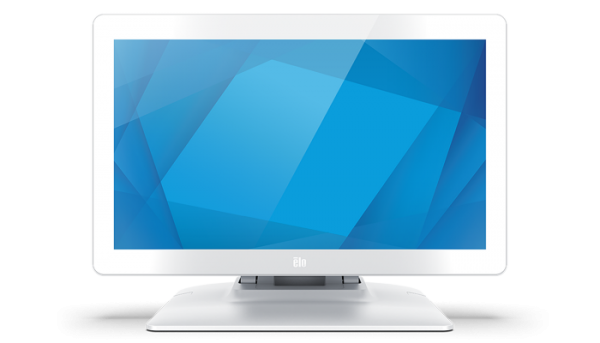

White With Stand – E542808
Black With Stand – E542617
White Without Stand – E967255
Black Without Stand – E967064
Enclosure Color
White or Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Diagonal Size
15.6” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
13.55″ x 7.62″ / 344.16 mm x 193.5 mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 @ 60Hz
640 x 400 @ 70Hz
720 x 400 @ 70Hz
800 x 600 @ 56, 60Hz
1024 x 768 @ 60Hz
1280 x 720 @ 50, 60Hz
1280 x 800 @ 60Hz, 60HzRB
1280 x 960 @ 60Hz
1280 x 1024 @ 60Hz
1360 x 768 @ 60Hz
1366 x 768 @ 60Hz, 60Hz RB
1440 x 900 @ 60Hz, 60Hz RB
1680 x 1050 @ 60Hz, 60Hz RB
1920 x 1080 @ 50, 60Hz
Viewing Angle
Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
With PCAP: 225 nits
Response Time-total (typical)
30 msec
Contrast Ratio
700:1
Touch Interface
USB
Surface Treatment
Anti-glare
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
I/O Ports
USB Type-C
Audio jack (Line-in)
VGA (Micro-HDMI female connecter)
HDMI
12V D/C input
3 x Micro-USB ports (Top, Left, Right)
Speakers
2 x 2W internal speakers
Video
Analog VGA
HDMI
USB Type-C (support DP Alt mode)
(Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues)
Input Video Horizontal Sync frequency range: 31.5 – 82KHz
Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz
Power
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical)
Monitor + adapter
ON: 9.5 W
SLEEP: 1.27 W
OFF: 0.2 W
Monitor Dimensions (without Stand)
9.62” x 15.23” x 1.28” / 244.39 mm x 386.96 mm x 32.4 mm
Monitor Dimensions (with Stand)
11.21” x 15.23” x 7.84” / 284.65 mm x 386.96 mm x 199.12 mm
Shipping Box Dimensions
With Stand: 8.03” x 17.76” x 13.54”/ 204 mm x 451 mm x 344 mm
Without Stand: 6.89″ x 17.76″ x 12.60″ / 175 mm x 451 mm x 320 mm
Weight (Unpackaged)
With Stand: 6.79 lbs / 3.08 kg
Without Stand: 3.62 lbs / 1.64 kg
Weight (Packaged)
With Stand: 11.24 lbs / 5.1 kg
Without Stand: 7.47 lbs / 3.39 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated
Mounting Options
VESA 4-hole 75mm and 100mm mounting interface on rear of unit
Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations
Canada cUL, IC
China CCC
Europe CE
United Kingdom UKCA
Taiwan BSMI
Korea, KCC, e-standby
United States UL, FCC
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico NOM
India BIS
RoHS, China RoHS, WEEE, REACH
UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1
Ingress Protection
IP22 entire enclosure
Impact Protection
IK07
What’s in the Box
Touchmonitor
Quick Install Guide
HDMI cable
Power brick (E128201)
2x cable clamps
2x Tie wraps
EEI Label
USB Cable (USB Type-A to Type-C)
NA Power cable
EU Power cable
3x screws (M3x8mm) for cable clamps
2x screws (M3x10mm) for cable doors
Optional Peripherals
PCAP Stylus Pen – Elo P/N: E066148
Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Tabletop Stand for 15” Display (Black) – Elo P/N: E044162
Tabletop Stand for 15” Display (White) – Elo P/N: E765019
Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) – Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) – Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) – Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
North America Power Cable – C13 – Elo P/N: E593865
Australia Power Cable – C13 – Elo P/N: E594067
Europe Power Cable – C13 – Elo P/N: E594264
Korea Power Cable – C13 – Elo P/N: E594466
China Power Cable – C13 – Elo P/N: E594670
Taiwan Power Cable – C13 – Elo P/N: E594869
Japan Power Cable – C13 – Elo P/N: E793799
Power Brick – 60W – 1502LM – Elo P/N: E181106
