Part Number(s)
PCAP White (Worldwide) – E336518
PCAP Black (Worldwide) – E738607
IntelliTouch ZB Dual Touch White (Asia-Pacific & Japan) – E243774
IntelliTouch ZB Dual Touch Black (Worldwide) – E394454

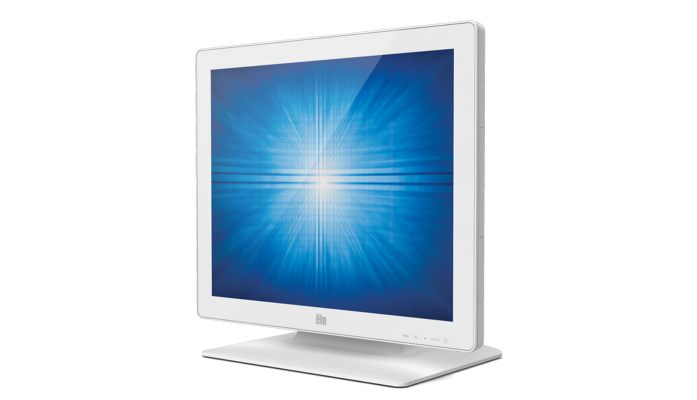

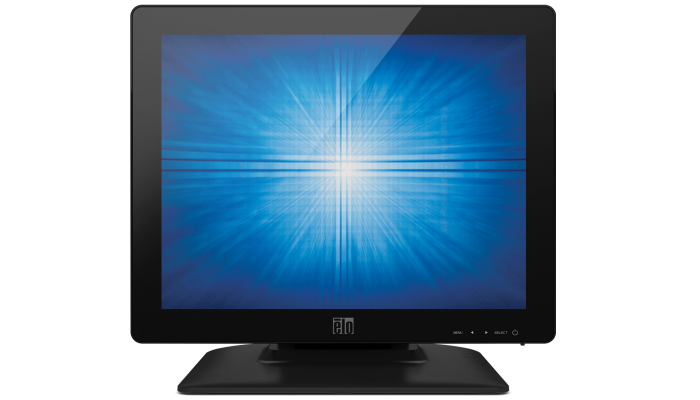

Enclosure Color
White or Black
Touch Technology & Capacity
SAW ZB (IntelliTouch® Surface Acoustic Wave) – Dual Touch
PCAP (Projected Capacitive) – 10 Touch
Diagonal Size
15” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area (mm)
IntelliTouch ZB: 11.97″ x 8.98″ / 304.13mm x 228.1mm
PCAP: 12.01″ x 9.01″ / 305.1mm x 229.1mm
Resolution
1024 x 768 @ 60Hz
Other Supported Resolutions
1024 x 768 at 60, 65, 70 or 75 Hz
800 x 600 at 56, 60,75 Hz
720 x 400 at 70 Hz
640 x 480 at 60,75 Hz
Viewing Angle
Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
Number of Colors
16.2 million
Brightness (typical)
LCD panel: 300 nits
IntelliTouch ZB: 270 nits
PCAP: 270 nits
Response Time-total (typical)
23 msec
Contrast Ratio
800:1
Touch Interface
USB
On Screen Display
Accessible through switches along the bottom:
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults
Languages
English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts
OSD, Power
USB Ports
2 peripheral ports (USB Interface)
Speakers
Internal speakers
Input Video Signal Connector
Analog VGA on Female DB-15 connector
Digital DVI on Female DVI-D, Dual-Link connector
Power Consumption (Typical)
Monitor + AC/DC adapter
ON: 10.5W
SLEEP: 3.0W
OFF: 0.2W
Power Supply
External DC (power brick)
Input Voltage
12VDC +/- 5%
Input Connector
Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter)
Input Frequency
Horizontal: 31.5 – 80 kHz / Vertical: 56 – 75 Hz
Monitor Dimensions (with Stand)
14.1″ x 7.84″ x 12.53″ / 358.1mm x 199.1mm x 318.5mm
Shipping Box Dimensions
17.60″ x 8.15″ x 14.96″ / 447mm x 207mm x 380mm
Weight (Unpackaged)
9.26 lbs / 4.2 kg
Weight (Packaged)
15.43 lb / 7.0 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated

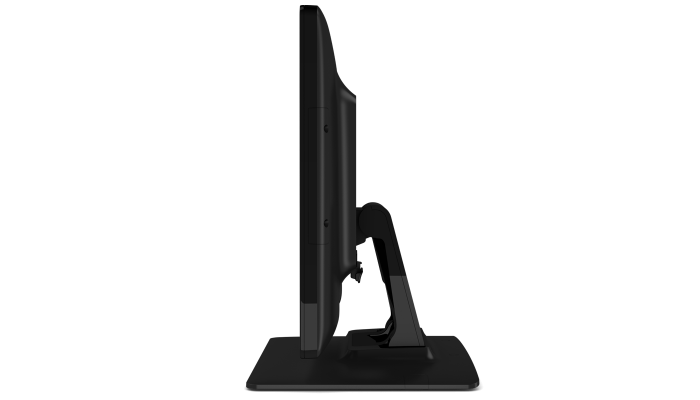

Stand Options
Tilt, remove

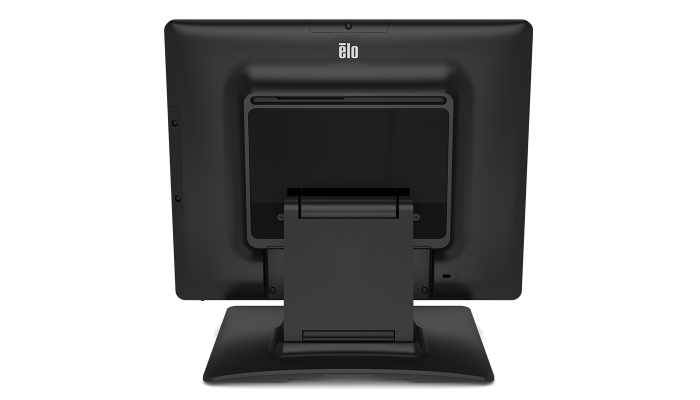

Mounting Options
75mm VESA mount
Other Features
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle
Internal speakers
Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations
UL, cUL, FCC, IC, CCC, CE, UKCA, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RCM, RoHS, China RoHS, WEEE
What’s in the Box
QIG, Japan Class-B TM info sheet, User Manual CD, 50W Power Brick, power cable, IEC 60320-C13 to NA/EU plug, DVI-D cable, VGA cable (DB-15 male to DB-15 male), USB cable (Type A plug to Type B plug), Audio cable, Stand base assembly, Filler Plate
Replacement DC Power Supply
The monitor may be powered with DC voltage. A optional 12V DC power brick is available at additional cost.
United States: E005277
Europe: E571601
United Kingdom: E180092
China: E558862
Taiwan: E818655
Japan: E182546
Argentina: E887099
AC Power Cable
Power cables are included. Replacement Cable Kit: E378229
North America: E378229
China: E030476
Taiwan: E637694
Japan: E849156 (3-pin to 2-pin adapter: E351985)
Optional PCAP Stylus Pen
E066148
Touch/Video/Audio/Accessory Cables:
All appropriate cables are included and are detachable.
Optional Peripherals
Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912
PCAP Stylus Pen – Elo P/N: E066148
Stands, Mounts & Kits
1523L VESA Mount Plate (White) – Elo p/n: E000449
1523L VESA Mount Plate (Black) – Elo p/n: E000448
