Part Number(s)
Celeron, No OS, 4GB RAM, 128GB SSD with Stand & I/O Hub – E402183
Celeron, Win 10, 4GB RAM, 128GB SSD with Stand & I/O Hub – E401992
Celeron, No OS, 4GB RAM, 128GB SSD with Wall Mount & I/O Hub – E485278
Celeron, Win 10, 4GB RAM, 128GB SSD with Wall Mount & I/O Hub – E484096
Celeron, No OS, 8GB RAM, 128GB SSD with Wall Mount & I/O Hub – E491271
i3, No OS, 4GB RAM, 128GB SSD with Stand & I/O Hub – E402576
i3, Win 10, 4GB RAM, 128GB SSD with Stand & I/O Hub – E402382
i3, No OS, 4GB RAM, 128GB SSD with Wall Mount & I/O Hub – E484495
i3, Win 10, 4GB RAM, 128GB SSD with Wall Mount & I/O Hub – E484291
i3, No OS, 8GB RAM, 128GB SSD with Wall Mount & I/O Hub – E491458
i5, No OS, 8GB RAM, 128GB SSD with Stand & I/O Hub – E402963
i5, Win 10, 8GB RAM, 128GB SSD with Stand & I/O Hub – E402781
i5, No OS, 8GB RAM, 128GB SSD with Wall Mount & I/O Hub – E484700
i5, Win 10, 8GB RAM, 128GB SSD with Wall Mount & I/O Hub – E484896
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Processor
Celeron Models: Intel® Celeron® Processor J4105 (4M Cache, up to 2.5 GHz)
i3 Models: Intel® Core™ i3-8100T Processor (6M Smart Cache, 3.10 GHz)
i5 Models: Intel® Core™ i5-8500T Processor (9M Smart Cache, up to 3.50 GHz by Intel® Turbo Boost Technology 2.0) Intel® vPro Support
Chipset
Celeron Models: N/A
i3 Models: Intel H310 Express
i5 Models: Intel Q370 Express
Graphics
Celeron Models: Intel UHD Graphics 600
i3 & i5 Models: Intel UHD Graphics 630
BIOS
AMI
Memory (RAM)
Celeron Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 8GB)
i3 Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)
i5 Models: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)
NOTE: Check brand of the memory included in your unit before purchasing the memory kit.
Storage
128GB M.2 SATA SSD, 80 TBW
Optional M.2 PCIe (NVMe) SSD for select models
GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
TPM
2.0
Active Management Technology (AMT)
Celeron Models: N/A
i3 Models: N/A
i5 Models: Active Management Technology (Intel® AMT 11.0) Support.
Diagonal Size
17” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area (mm)
13.3″ x 10.64″ / 337.9 mm x 270.3 mm
Resolution
1280 x 1024 @ 60Hz
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
PCAP: 212.5 nits
Response Time-total (typical)
5 msec
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
USB Ports
3 x USB 3.0 (1 on display head, 2 on I/O)
2 x USB 2.0 (on I/O)
4 x Micro USB 2.0 (on display head)
Powered USB
1 x 24V on I/O
2 x 12V on I/O
Ethernet Port
1 x LAN RJ45 (Gigabit)
Serial Ports
2 x RJ45
Cash Drawer Port
12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal swtich)
Wireless
Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz
Bluetooth
Bluetooth 5.0
Additional Video Out
1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)
Audio Ports
1 x 3.5 mm headset jack
Speakers
2 x 2W internal speakers
OS
No OS
Windows 10 IoT Enterprise LTSC 64-bit
Optional – Windows 10 Professional English 64-bit
Languages
Windows 10 – 36 Language groups
Power Supply
External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W
Power Consumption (Typical)
Celeron: 31W
i3: 63W
i5: 76W
Dimensions
With Stand: 15.49″ x 12.83″ x 8.71″ / 393.5 mm x 325.9 mm x 221.3 mm
Without Stand: 15.49″ x 12.83″ x 3.28″ / 393.5 mm x 325.9 mm x 83.3 mm
Shipping Box Dimensions
With Stand: 18.74″ x 11.14″ x 18.82″ / 476 mm x 283 mm x 478 mm
Without Stand: 18.74″ x 7.76″ x 15.75″ / 476 mm x 197 mm x 400 mm
Weight (Unpackaged)
With Stand: 14.77 lbs / 6.7 kg
Without Stand: 10.58 lbs / 4.8 kg
Weight (Packaged)
With Stand: 19.8 lbs / 9.0 kg
Without Stand: 15 lbs / 6.8 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95% (38.7℃ max wet bulb temperature)
Energy Star
Energy Star 7.1
Regulatory approvals and declarations
UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC
Real-Time Clock
CR2032 lithium metal battery
MTBF
50,000 hours demonstrated
Mounting Options
75mm VESA mount
Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E819598
5 year warranty coverage – Elo P/N: E819795
3 year warranty coverage + AUR – Elo P/N: E820186
4 year warranty coverage + AUR – Elo P/N: E820388
5 year warranty coverage + AUR – Elo P/N: E820582
Sealability
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD
Power Cables
North American and European power cables included
Other Features
Serviceable internal components.

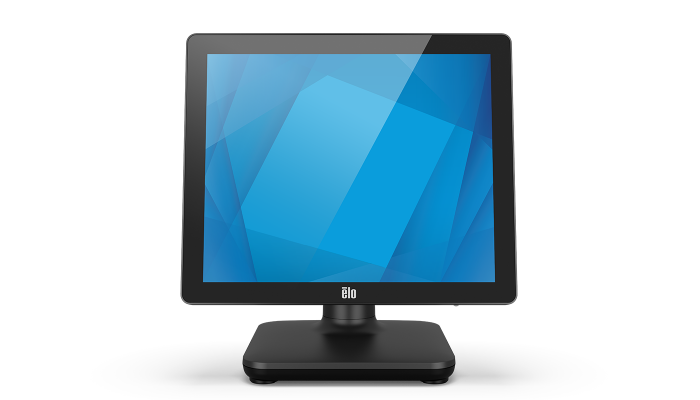

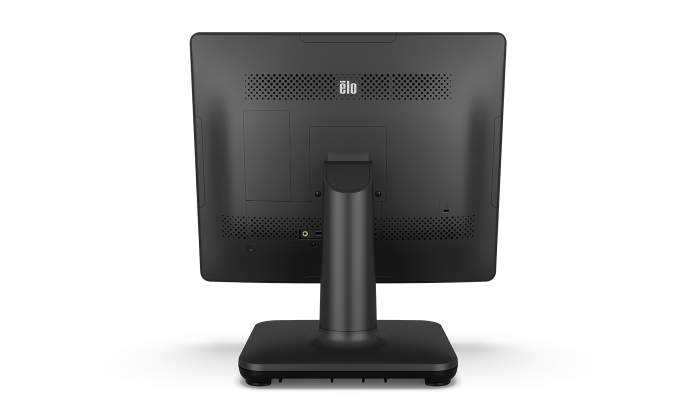

Models with a stand for desktop application.

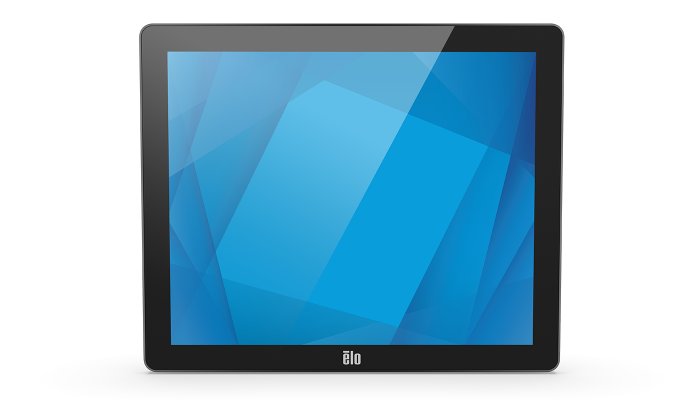

Models without a stand for 75mm VESA mounting.
Kensington lock.
What’s in the Box
EloPOS System
North America Power Cord
EU Power Cord
Power Adapter – 180W
Cable RJ-45 to DB-9
Cable cover locking screw
Quick Installation Guide (QIG)
Upgrade Options
4GB 2666 MHz DDR4 Memory SO-DIMM – Elo P/N: E264186
8GB 2666 MHz DDR4 Memory SO-DIMM – Elo P/N: E264375
16GB 2666 MHz DDR4 Memory SO-DIMM – Elo P/N: E263989
M.2 SATA 128GB SSD – Elo P/N: E206352
M.2 SATA 256GB SSD – Elo P/N: E206556
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
10″ LCD Customer-facing Display (10 touch) – Elo P/N E155834 (requires display mount kit E835969)
10″ LCD Customer-facing Display (no touch) – Elo P/N E324341 (requires display mount kit E835969)
1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires display mount kit E835969 which includes authorized Elo 2ft USB-C cable)
2D Barcode Scanner (SE4720) – Elo P/N: E384627
EMV Cradle for MagTek eDynamo – Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
Status Light (Micro-USB Connectivity) – Elo P/N: E644767
6ft Elo authorized USB-C cable – Elo P/N: E710364
Stands, Mounts & Kits
Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) – Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) – Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) – Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
Rear-facing Display Mount – Elo P/N: E835969 (Requires authorized 2ft USB-C cable)
Power Brick Kit, 24V 180W – Elo P/N: E845269
Elo 2ft authorized USB-C cable – Elo P/N: E969524
