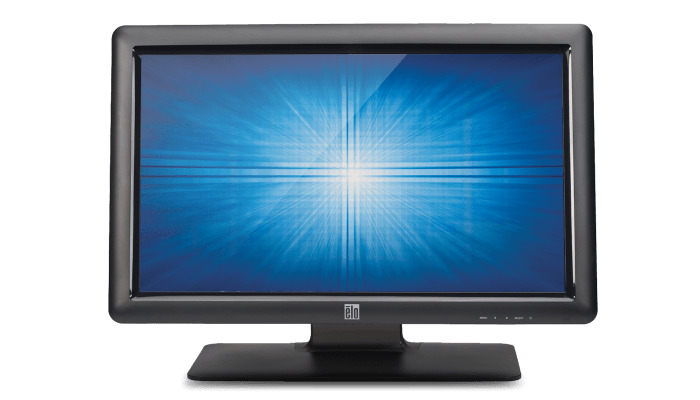

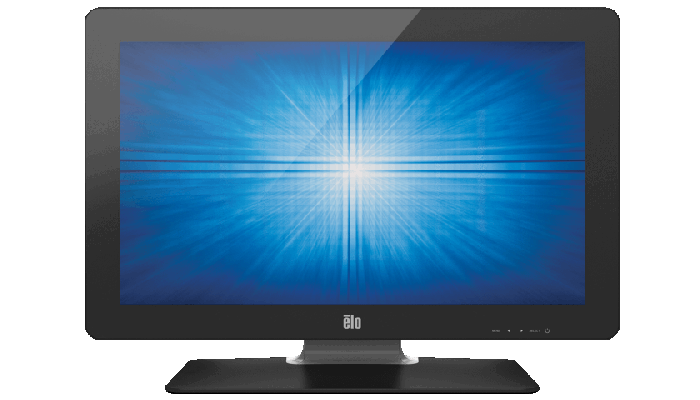

Part Number(s)
IntelliTouch ZB (Worldwide) – E382790
IntelliTouch Dual-Touch (Worldwide) – E107766
Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) – Dual Touch
SAW ZB (IntelliTouch® Surface Acoustic Wave) – Single Touch
Diagonal Size
22” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
18.8″ x 10.6″ / 476mm x 268mm
Resolution
1920 x 1080 @ 50, 60Hz
Other Supported Resolutions
640 x 480 60Hz
720 x 576 50Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1680 x 1050 60Hz
1920 x 1080 50, 60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
IntelliTouch DT: 225 nits
IntelliTouch ZB: 225 nits
Response Time-total (typical)
14 msec
Contrast Ratio
1000:1
Input Video Format
Analog VGA on Female DB-15 connector; Digital DVI on Female DVI-D connector
Input Video Frequency
Horizontal: 32 – 80 KHz
Vertical: 50 – 75 Hz
Audio Input Connector
One 3.5mm TRS jack
Headphone Output Connector
One 3.5mm TRS jack
Power Supply
DC (external power adapter included with unit)
Input Voltage
12VDC +/- 5%
Input Connector
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Adapter Input Connector
IEC 60320 C6
Adapter Input Voltage Range
100-240 VAC, 50 – 60 Hz
Power Consumption (Typical)
ON (monitor + adapter): 26.04W
SLEEP (monitor + adapter): 0.83W
OFF (monitor + adapter at): 0.67W
Speakers
Two x 2W internal speakers
On Screen Display
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, Vposition, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults, Video Source
Languages
English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts
OSD, Power
Monitor Dimensions (with Stand)
21.7″ x 15.4″ x 7.6″ / 551mm x 392mm x 193mm
Shipping Box Dimensions
20.5″ x 27.2″ x 11.0″ / 520mm x 690mm x 280mm
Weight (Unpackaged)
16.5 lb / 7.5 kg
Weight (Packaged)
27.6 lb / 12.5 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated

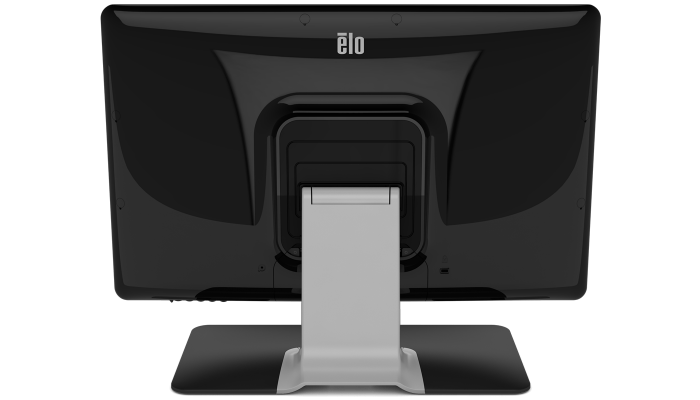

Stand Options
Tiltable and removable
Mounting Options
VESA 4-hole 100mm mounting interface on rear of unit
4-hole 200x100mm threaded mounting on bottom of stand
Other Features
Security lock receptacle
Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations
Australia RCM
Canada cUL, IC
China CCC
Europe CE
United Kingdom UKCA
Japan VCCI
Korea KCC, e-Standby
Mexico CoC
Russia EAC
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE, IMERC
What’s in the Box
For P/N: E382790 and E107766 – Touchmonitor, TouchTools CD, Quick Install Guide, JP regulatory pamphlet, Cables – DVI, VGA, USB, Audio, AC-DC power adapter, NA and EU power cables.
For P/N: E110488 – Touchmonitor, TouchTools CD, Quick Install Guide, JP regulatory pamphlet, Cables –DVI, VGA, USB, Audio, AC-DC power adapter, CCC power cable.
Replacement DC Power Supply
The monitor may be powered with DC voltage. An optional 12V DC power brick is available at additional cost.
Replacement power brick kits – 50W power adapter + regional power cable-C13 type
United States: E005277
Europe & Korea: E571601
United Kingdom: E180092
China: E558862
Taiwan: E818655
Japan: E182546
Argentina: E887099
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo P/N: D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:
Detachable touch, audio, power (for all regions) and video cables are included.
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E757859
