Part Number(s)
With Stand – E351600
Without Stand – E126096
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Diagonal Size
21.5” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
18.74″ x 10.54″ / 476.06 mm x 267.79 mm
Resolution
1920 x 1080 @ 50, 60Hz
Other Supported Resolutions
640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56Hz, 60Hz
1024 x 768 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
TouchPro PCAP: 225 nits
Response Time-total (typical)
14 msec
Contrast Ratio
1000:1
Touch Interface
USB
Surface Treatment
Clear
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru
Languages
English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
Lockouts
OSD, Power
I/O Ports
VGA
HDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB
Speakers
Two x 2W internal speakers
Input Video Format
VGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included)
Input Video Frequency
Horizontal: 30 – 82KHz
Vertical: 50 – 75Hz
Power Consumption (Typical)
Monitor + AC/DC adapter
ON (Default – 80% Brightness): 14.38 W
ON (Typical – 100% Brightness): 16.26 W
SLEEP: 0.69 W
OFF: 0.32 W
Input Voltage
12VDC +/- 5%
100-240VAC, 50/60Hz
Input Connector
Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting
4x Micro USB side ports (Top, Bottom, Left, Right)

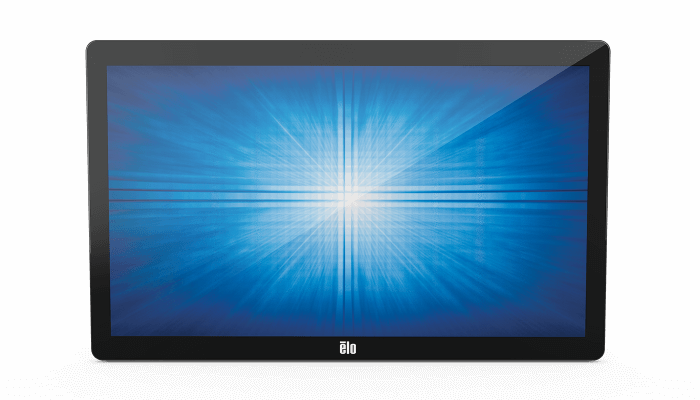

Monitor Dimensions (without Stand)
12.87″ x 20.74″ x 1.68″ / 326.9 mm x 526.9 mm x 42.7 mm

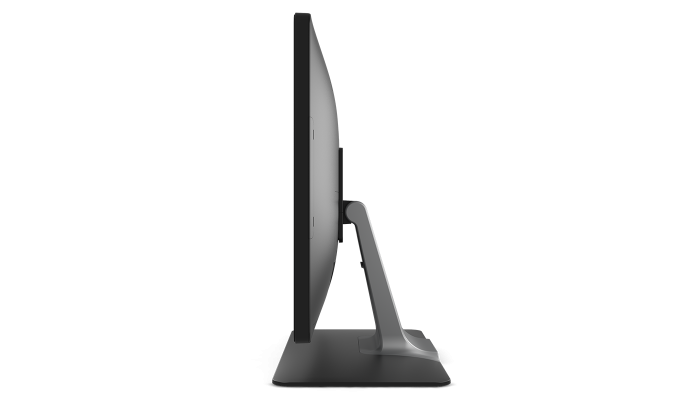

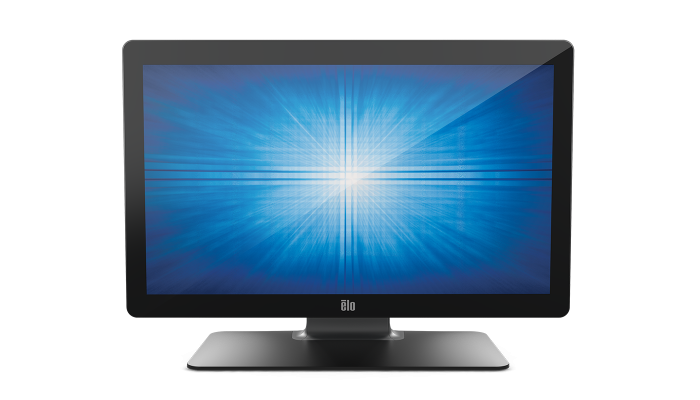

Monitor Dimensions (with Stand)
15.11″ x 20.74″ x 7.61″ / 383.8 mm x 526.9 mm x 193.4 mm
Shipping Box Dimensions
With Stand: 18.78″ x 24.29″ x 10.24″ / 477 mm x 617 mm x 260 mm
Without Stand: 17.72″ x 24.92″ x 7.72″ / 450 mm x 633 mm x 196 mm
Weight (Unpackaged)
With Stand: 14.88 lbs / 6.75 kg
Without Stand: 10.47 lbs / 4.75 kg
Weight (Packaged)
With Stand: 23.81 lbs / 10.8 kg
Without Stand: 15.87 lbs / 7.2 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated

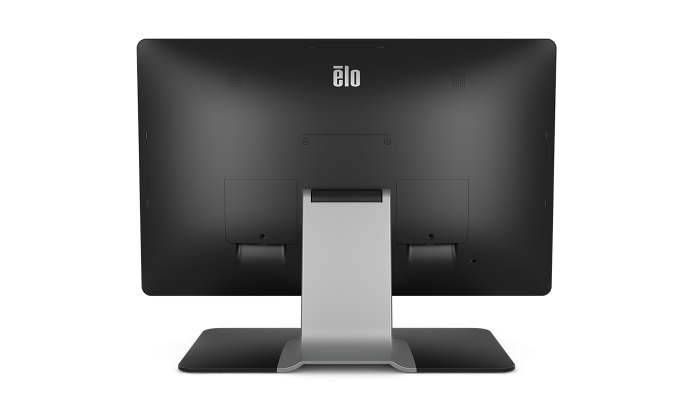

Mounting Options
VESA 4-hole 100mm mounting interface on rear of unit
Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations
Canada CUL, IC
China CCC
Europe CE
United Kingdom UKCA
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico CoC
India BIS
RoHS, China RoHS, WEEE, REACH
Ingress Protection
IPX1 – Front only
Impact Protection
IK06
Power Cables
North America Power Cable C13 – Elo P/N: E593865
Australia Power Cable C13 – Elo P/N: E594067
Europe Power Cable C13 – Elo P/N: E594264
Korea Power Cable C13 – Elo P/N: E594466
China Power Cable C13 – Elo P/N: E594670
Taiwan Power Cable C13 – Elo P/N: E594869
Japan Power Cable C13 – Elo P/N: E793799
What’s in the Box
Touchmonitor
Quick Install Guide
3x Tie wraps
VGA cable
HDMI cable
Touch USB cable
Audio cable
Power brick
NA Power cable
EU Power cable
EEI Label
4 screws (for E126096)
Replacement DC Power Supply
Power Brick 50W – E593661
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (SE4720) – Elo P/N: E384627
2D Barcode Scanner (SE4107) – Elo P/N: E245047
EMV Cradle for MagTek eDynamo – Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
Status Light (Micro-USB Connectivity) – Elo P/N: E644767
Temperature Sensor Pro – Elo P/N: E534879
3D Camera – Elo P/N: E134699
Webcam – Elo P/N: E201494
Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Elo Backpack® – Elo P/N: E611864
Elo Backpack® 3.0 – Elo P/N: E901355
Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
1.8m Cable Kit – Elo P/N: E408193
Elo Stand 1902/3-2202/3 – Black – Elo P/N: E804330
Slim Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E514881 + E515260
