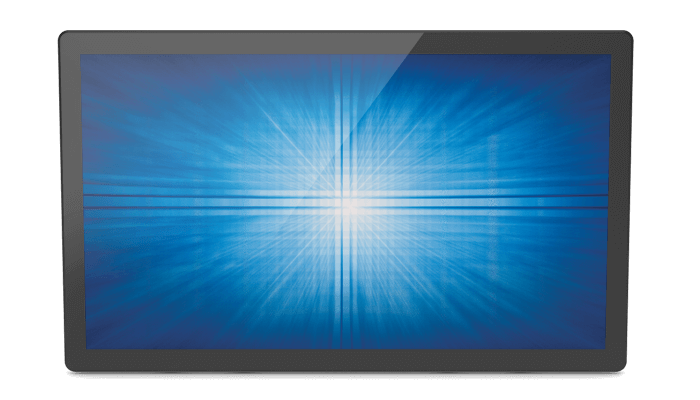

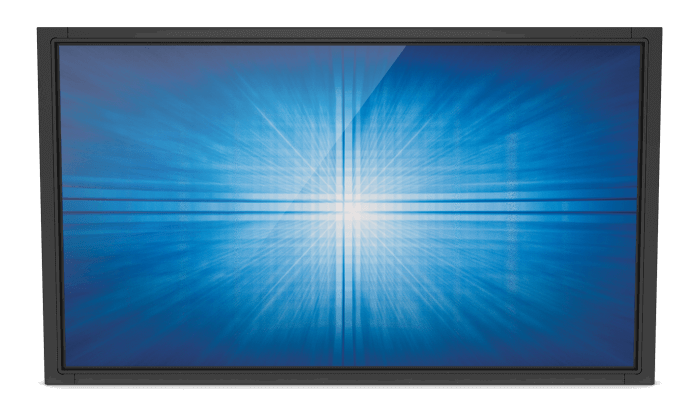

Part Number(s)
IntelliTouch – E330019
IntelliTouch Dual Touch – E329825
TouchPro PCAP – E493782
Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) – Single Touch
SAW (IntelliTouch® Surface Acoustic Wave) – Dual Touch
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Touch Interface
TouchPro PCAP, IntelliTouch DT – USB 2.0
IntelliTouch – Dual serial/USB 2.0
Diagonal Size
23.8” diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru (Only available for TouchPro PCAP)
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Aspect Ratio
16:9
Active Area (mm)
20.75″ x 11.67″ / 527.04 mm x 296.46 mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
IntelliTouch: 225 nits
IntelliTouch Dual-Touch: 225 nits
TouchPro PCAP: 225 nits
Response Time-total (typical)
16 msec
Contrast Ratio
3000:1
I/O Ports
Serial port (IntelliTouch only), USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in
Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a – Supports later versions of DisplayPort video input
Input Video Frequency
Horizontal: 30 – 82 KHz
Vertical: 50 – 75 Hz
Power Supply
External DC – Optional power brick (sold separately)
Input power connector (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Voltage
12VDC +/- 5%
Adapter Output Power Connector
DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Power Consumption (Typical)
ON (Default – 75% Brightness): 15.24 W
ON (Typical – 100% Brightness): 17.46 W
SLEEP FROM PC (monitor + adapter): 1.07 W
OFF (monitor + adapter): 0.2 W
Dimensions
Bezel: 22.14″ x 12.86″ x 1.64″ / 562.4 mm x 326.6 mm x 41.7 mm
TouchPro PCAP: 22.41″ x 13.43″ x 1.5″ / 569.2 mm x 341.1 mm x 38 mm
Shipping Box Dimensions
27.24″ x 17.8″ x 7.48″ / 692 mm x 452 mm x 190 mm
Weight (Unpackaged)
IntelliTouch: 14.09 lbs / 6.39 Kg
TouchPro PCAP: 13.6 lbs / 6.17 Kg
Weight (Packaged)
IntelliTouch: 19.29 lbs / 8.75 Kg
TouchPro PCAP: 17.79 lbs / 8.07 Kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
GLI 27 kV air / 8 kV contact ESD compliant (TouchPro PCAP only)
UL 62368 ball-drop compliant (TouchPro PCAP only)
IK08 impact compliant (TouchPro PCAP only)

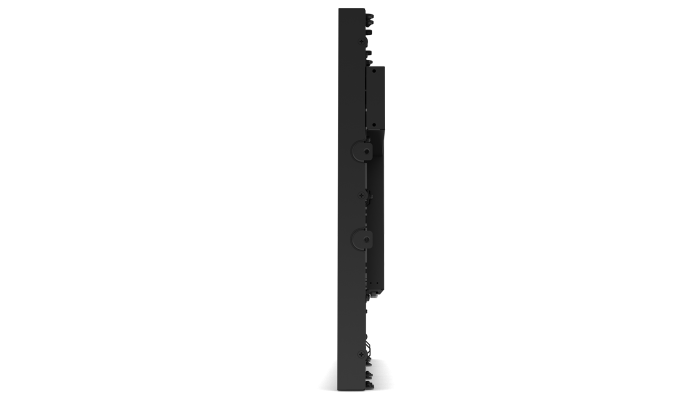

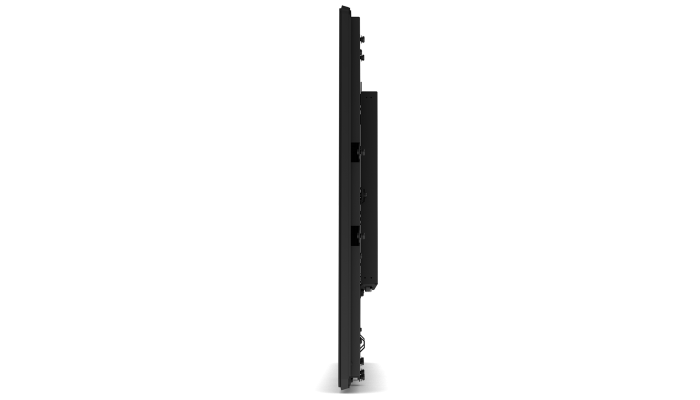

Mounting Options

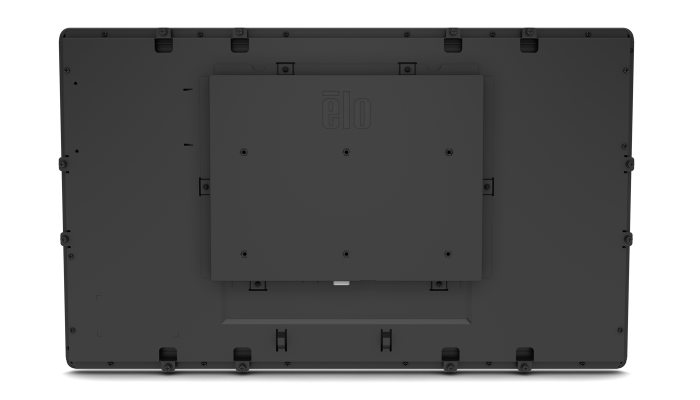

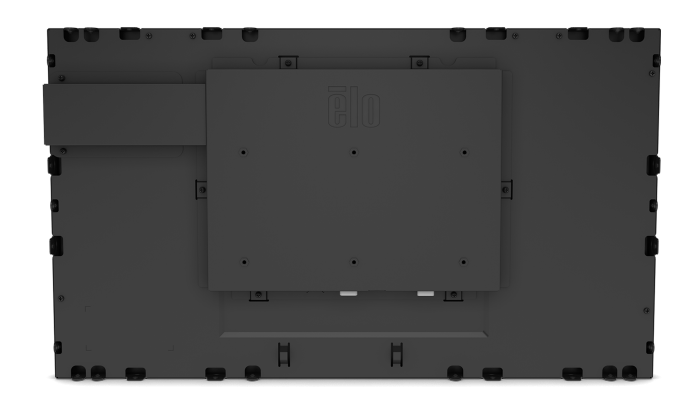

200x100mm VESA mount on rear of unit
4-hole mounting interface on all four sides. (IntelliTouch/IntelliTouch DT Models see Part Numbers for details)
Side mount with included “L” brackets (IntelliTouch/IntelliTouch DT Models see Part Numbers for details)
Front mount with optional bezel kit (IntelliTouch/IntelliTouch DT Models see Part Numbers for details – Not for use with TouchPro PCAP Models)
Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details)
What’s in the Box
HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
For Zero-Bezel Models: Flush Mount Brackets w/Screws
For Bezeled – IntelliTouch/IntelliTouch DT Models: “L” (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheet
Options / Peripherals / Upgrades
Elo Remote OSD (RJ45) – Elo P/N: E483757
Elo Backpack® – Elo P/N: E611864
Elo Backpack® 3.0 – Elo P/N: E901355
Replacement Cable Kit – Elo P/N: E546861
Cable Kit DVI-D to HDMI – Elo P/N: E538507
Cable Kit DP to DP – Elo P/N: E582895
North America power brick – Elo P/N: E005277
European & Korea power brick – Elo P/N: E571601
UK power brick – Elo P/N: E180092
China power brick – Elo P/N: E558862
Taiwan power brick – Elo P/N: E818655
Japan power brick – Elo P/N: E182546
Argentina power brick – Elo P/N: E887099
Australia power brick – Elo P/N: E637593
IntelliTouch Stylus Pen – Elo P/N: D82064-000
Elo 24-inch – Wide L-Bracket – Elo P/N: E000878
Elo 24-inch Wide Front-mount Bezel – Elo P/N: E083096 (See Mounting Options Spec for Compatibility)
Elo 24-inch Wide Flush-mount Bracket – Elo P/N: E000879
Power DC 24V/DC 12V Converter – Elo P/N: E239980
Optional PCAP Stylus Pen
E066148
