Part Number(s)
TouchPro PCAP – E506980
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Touch Interface
USB 2.0

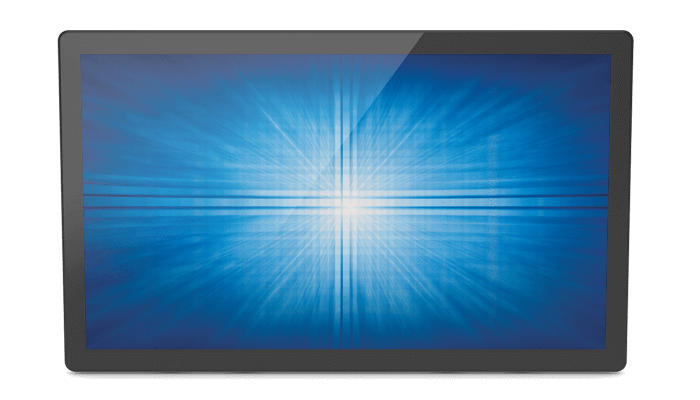

Diagonal Size
23.8” diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Aspect Ratio
16:9
Active Area (mm)
20.75″ x 11.67″ / 527.04 mm x 296.46 mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 600 nits
TouchPro PCAP: 540 nits
Response Time-total (typical)
14 msec
Contrast Ratio
1000:1
I/O Ports
USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in
Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a – Supports later versions of DisplayPort video input
Input Video Frequency
Horizontal: 30 – 82 KHz
Vertical: 50 – 75 Hz
Power
External DC – Optional power brick (sold separately)
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical)
ON (Typical – 100% Brightness): 32.95 W
SLEEP FROM PC (monitor + adapter): 0.71 W
OFF (monitor + adapter): 0.2 W

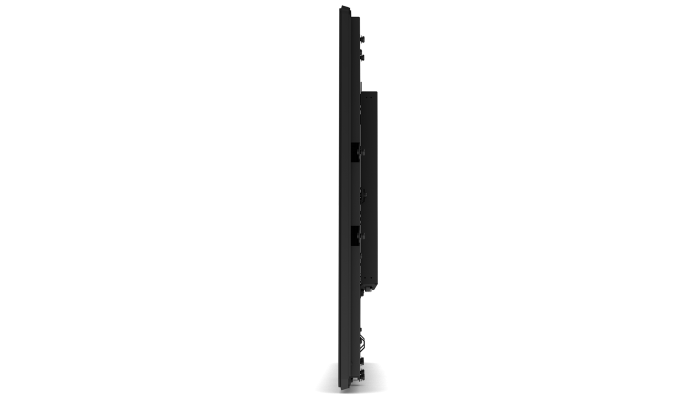

Dimensions
22.41″ x 13.43″ x 1.46″ / 569.2 mm x 341.1 mm x 37 mm
Shipping Box Dimensions
27.24″ x 17.8″ x 7.48″ / 692 mm x 452 mm x 190 mm
Weight (Unpackaged)
12.47 lbs / 5.65 kg
Weight (Packaged)
16.7 lbs / 7.57 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125
Regulatory approvals and declarations
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
Compliance
GLI 27 kV air / 8 kV contact ESD compliant
UL 62368 ball-drop compliant
IK07 impact compliant
Mounting Options

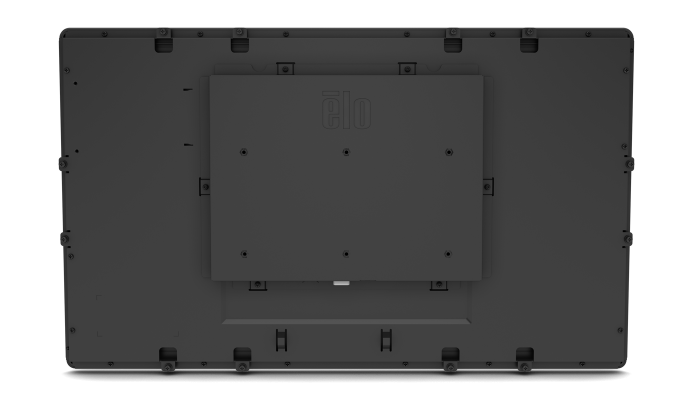

200x100mm VESA mount on rear of unit
Flush mount with included brackets
What’s in the Box
HDMI cable
VGA Cable
Remote OSD
Touch USB Cable
Quick Install Guide
Flush Mount Brackets w/Screws
EEI Label
Japan Class-B TM info sheet
Options / Peripherals / Upgrades
Elo Remote OSD (RJ45) – Elo P/N: E483757
Elo Backpack® – Elo P/N: E611864
Elo Backpack® 3.0 – Elo P/N: E901355
Replacement Cable Kit – Elo P/N: E546861
Cable Kit DVI-D to HDMI – Elo P/N: E538507
Cable Kit DP to DP – Elo P/N: E582895
North America power brick – Elo P/N: E005277
European & Korea power brick – Elo P/N: E571601
UK power brick – Elo P/N: E180092
China power brick – Elo P/N: E558862
Taiwan power brick – Elo P/N: E818655
Japan power brick – Elo P/N: E182546
Argentina power brick – Elo P/N: E887099
Australia power brick – Elo P/N: E637593
Elo 24-inch Wide Flush-mount Bracket – Elo P/N: E000879
Power DC 24V/DC 12V Converter – Elo P/N: E239980
