Part Number(s)
IntelliTouch Dual Touch (Worldwide) – E000444
Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) – Dual Touch
Diagonal Size
42” diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the OSD Control Remote accessory.
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.
See user manual for full details.
Aspect Ratio
16:9
Active Area (mm)
36.6″ x 20.6″ / 930mm x 523mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 at 60Hz
800 x 500 at 60Hz
800 x 600 at 56/60Hz
1024 x 768 at 60Hz
1280 x 720 at 60Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60Hz
1360 x 768 at 60 Hz
1366 x 768 at 60 Hz
1440 x 900 at 60 Hz
1600 x 1200 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1080 at 60 Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
1073.7 million
Brightness (typical)
LCD panel: 500 nits
IntelliTouch Dual Touch: 450 nits
Response Time-total (typical)
8 msec
Contrast Ratio
4000:1
Input Video Format
Analog VGA, HDCP-capable HDMI 1.3
Input Video Signal Connector
Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only)
Input Video Frequency
Horizontal: 31 – 80 KHz
Vertical: 47 – 63 Hz
Power Supply
Internal AC
Input Voltage
AC: 100-240 VAC, 50/60 Hz
Input Connector
AC: IEC 60320 C14
Maximum Operating Time
24 hours/day
Power Consumption (Typical)
Monitor Only
(Typical at 100V at 60Hz):
ON: 72.87 W
SLEEP: 0.24 W
OFF: 0.16 W
(Typical at 240V at 50Hz):
ON: 74.38 W
SLEEP: 0.45 W
OFF: 0.35 W
Dimensions
38.5″ x 22.6″ x 2.6″ / 978mm x 575mm x 65mm
Shipping Box Dimensions
45.9″ x 33.7″ x 11.02″ / 1168mm x 856mm x 280mm
Weight (Unpackaged)
44 lbs / 20 kg
Weight (Packaged)
61 lbs / 27.67 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage + AUR – Elo P/N: E740135
5 year warranty coverage + AUR – Elo P/N: E740330
Regulatory approvals and declarations
Australia RCM
Canada cUL, IC
China CCC, China RoHS
Europe CE
Japan VCCI
Korea KCC e-standby
Mexico NOM, CoC
Taiwan BSMI
United States UL, including UL 62368-1, FCC
International CB
Russia EAC
Mounting Options

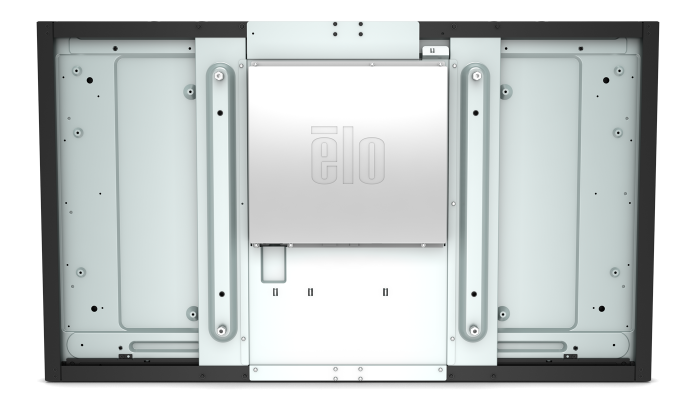

Mounting Options 400, 400, 6mm VESA mount
Side mounting brackets included
What’s in the Box

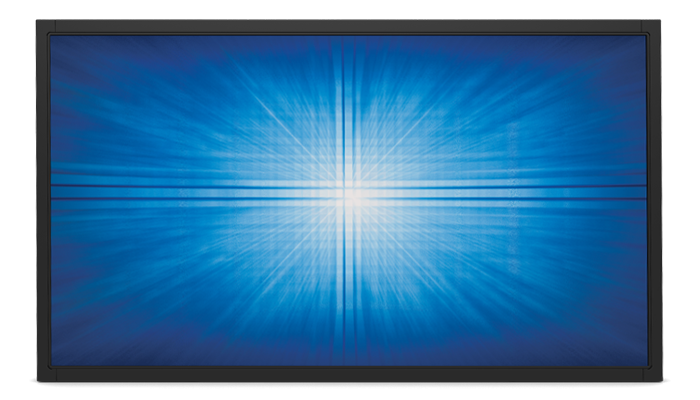

4243L
QIG
EEI Label
OSD Remote
HDMI Cable
VGA Cable
USB Cable (Type A to B)
Power Cable IEC 60320-C13 (NA plug)
Power Cable IEC 60320-C13 (EU/KR plug)
Power Cable IEC 60320-C13 (UK plug)
Power Cable IEC 60320-C13 (AR plug)
Power Cable IEC 60320-C13 (CH plug)
Power Cable IEC 60320-C13 (TW plug)
Power Cable IEC 60320-C13 (JP plug)
3-pin to 2-pin adapter for JP power cable
Side Mount Brackets x8
Side Mount Bracket Screws x16
Options / Peripherals / Upgrades
Elo Remote OSD (RJ45) – Elo P/N: E483757
Elo Backpack® – Elo P/N: E611864
IntelliTouch Stylus Pen – Elo P/N: D82064-000
Replacement Bracket Kit for 3243L IT model – Elo P/N: E727550
