Part Number(s)
M50C, Cellular (AT&T), United States – E862757
M50C, Cellular (Open Carrier), Europe – E993091
M50, WiFi, Worldwide – E862573
M50, WiFi, China – E994271
Enclosure Color
Black
Touch Technology & Capacity
PCAP (Projected Capacitive) – 2 Touch
Processor
Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory (RAM)
4GB
Storage
64GB
OS
Android 10 with Google Play Services (AOSP capable)
Android 10 AOSP
Planned upgrade to Android 11 (Android 12 support pending)
Display
5.5” Optically Bonded High Definition LCD
Touchscreen
Projective capacitive with Corning Gorilla Glass
Water rejection
Anti-Fingerprint Coating
Sensor
Light sensor (automatically adjust backlight brightness)
Proximity sensor (disable display and touch when user places against head)
Accelerometer
Resolution
1280 x 720
Brightness (typical)
400 nits
Contrast Ratio
1000:1
Battery
Rechargeable, 3.8V/4000mAh
User swappable
Qualcomm Quick Charge 4
Cellular
Available on cellular SKU’s with user accessible nano SIM slot.
LTE US Carriers: AT&T, Telus
LTE Europe: Open Carrier
For E862757:
WCDMA: B2, B4, B5
LTE: B2, B4, B12, B13, B66
For E993091:
WCDMA: B1, B8
LTE: B1, B3, B7, B8, B20
GPS
Simultaneous GNSS Receiver for GPS, GLONASS, Galileo and BeiDou
AGPS support
(for cellular models only)
I/O Ports
USB Type-C for display, charging, and data
Camera
8MP Auto-Focus with Flash LED and Flashlight (Torch)
NFC
MiFare
Felica
ISO15693
ISO 14443-A
ISO 14443-B
P2P mode and Card Emulation
Barcode Scanner
SE4710 scan engine (1D/2D Imager)
Wireless
802.11a/b/g/n/ac with 2×2 MU-MIMO
Bluetooth
Bluetooth 5.0
LED
1x combination Green/Amber LED for battery/charging status
1x combination Blue/Red user programmable LED
Keyboard
On screen keyboard
Audio
Microphone
1W Front facing speaker
Bluetooth headset support
USB-C headset support

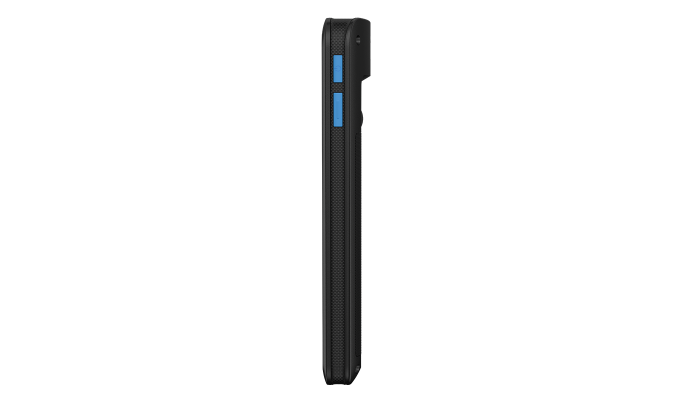

Buttons
Left and Right Programmable Scanner Trigger buttons
Power Button
Dimensions
3.36″ x 6.57″ x 0.68″ / 85.5 mm x 167 mm x 17.4 mm
Shipping Box Dimensions
8.54″ x 5.59″ x 2.83″ / 217 mm x 142 mm x 72 mm
Weight (Unpackaged)
327g
Weight (Packaged)
700g
Operating Temperature
0°C to 50°C / 32°F to 122°F
Storage Temperature
-30°C to 60°C / -22°F to 140°F
Humidity
5% to 95% non-condensing
Regulatory approvals and declarations
UL, FCC (US) – Class B
cUL, IC (Canada)
CB (International safety)
CE (Europe) – Class B
VCCI (Japan)
RCM (Australia)
China RoHS
ESD
Class C: 8kV contact, 15kV air
Drop Rating
Multiple 4ft/1.2m drops per MIL810-G standard
Tumble Rating
1000 tumbles, 1.6ft./0.5m per IEC 60068-2-32
Warranty
1-year
Extended Service Options
3 year warranty coverage + ADP – Elo P/N: E672040
5 year warranty coverage + ADP – Elo P/N: E672239
1 year warranty coverage + AUR + ADP – Elo P/N: E894512
3 year warranty coverage + AUR + ADP – Elo P/N: E672440
5 year warranty coverage + AUR + ADP – Elo P/N: E672646
3 year warranty coverage + ADP + OS 360 – Elo P/N: E893726
5 year warranty coverage + ADP + OS 360 – Elo P/N: E893926
3 year warranty coverage + AUR + ADP + OS 360 – Elo P/N: E894122
5 year warranty coverage + AUR + ADP + OS 360 – Elo P/N: E894322
3 year OS 360 – Elo P/N: E873133
5 year OS 360 – Elo P/N: E873326
3 year warranty coverage – Elo P/N: E109492 (APAC only)
5 year warranty coverage – Elo P/N: E109688 (APAC only)
OS Support
Complimentary security updates provided for 1 year.
Optional extended coverage available with Elo OS 360 package

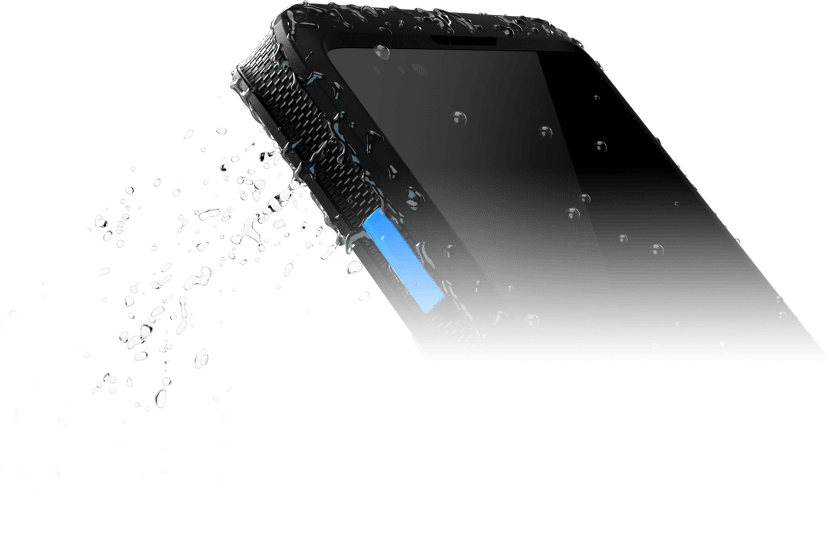

Sealability
IP65 per IEC standard 60529
What’s in the Box
Elo M50
USB Type C Charger with Qualcomm Quick Charge 4.0
Quick Install Guide
Expansion Options
MicroSD up to 32GB SDHC and up to 256 GB SDXC
Optional Accessories
EM10 Expansion Module – Elo P/N: E863687
DS10 Docking Station – Elo P/N: E864066
M50 Battery – Elo P/N: E864455

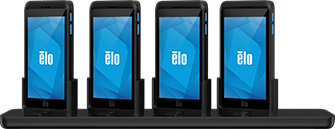

DC10 4 Slot Device Charger – Elo P/N: E864653
BC10 4 Slot Battery Charger – Elo P/N: E461816
HS10 Hand Strap – Elo P/N: E994659
