Part Number(s)
M60C, Cellular (AT&T and T-Mobile), United States – E862945
M60C, Cellular (Open Carrier), Europe – E993295
M60, WiFi, Worldwide – E863128
M60SC (with barcode scanner), Cellular (AT&T and T-Mobile), United States – E898054
M60SC (with barcode scanner), Cellular (Open Carrier), Europe – E897852
M60S (with barcode scanner), WiFi, Worldwide – E897667
Enclosure Color
Black
Processor
Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory (RAM)
3GB
Storage
32GB
OS
Android 10 with Google Play Services (AOSP capable)
Planned upgrade to Android 12 available with OS 360 subscription

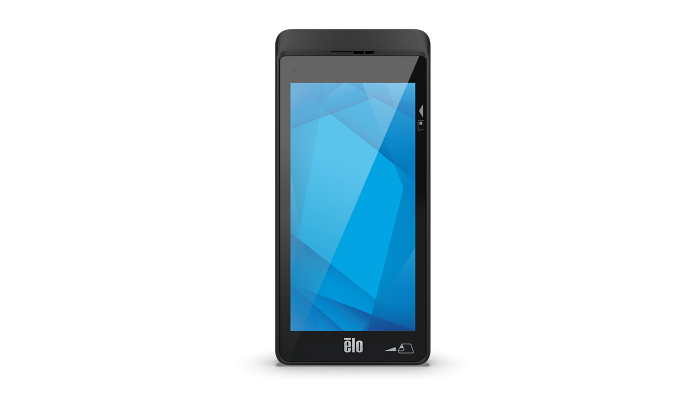

Display
6” Optically Bonded High Definition LCD
Touchscreen
Projective capacitive with Corning Gorilla Glass
Water rejection
Anti-Fingerprint Coating
Sensor
Light sensor (automatically adjust backlight brightness)
Proximity sensor (disable display and touch when user places against head)
Accelerometer
Resolution
1440 x 720
Brightness (typical)
430 nits
Contrast Ratio
1500:1
Battery
Rechargeable Li-Polymer, 3.8V/4000mAh
Serviceable battery
Qualcomm Quick Charge 4
Cellular
Available on cellular SKU’s with user accessible nano SIM slot.
LTE US Carriers: AT&T, T-Mobile
LTE Europe: Open Carrier
For E862945 (M60C), E898054 (M60SC):
WCDMA: B2, B4, B5
LTE: B2, B4, B12, B13, B66
For E993295 (M60C), E897852 (M60SC):
WCDMA: B1, B8
LTE: B1, B3, B7, B8, B20
GPS
Simultaneous GNSS Receiver for GPS, GLONASS, Galileo and BeiDou
AGPS support
(for cellular models only)
I/O Ports
USB Type-C for display, charging and data

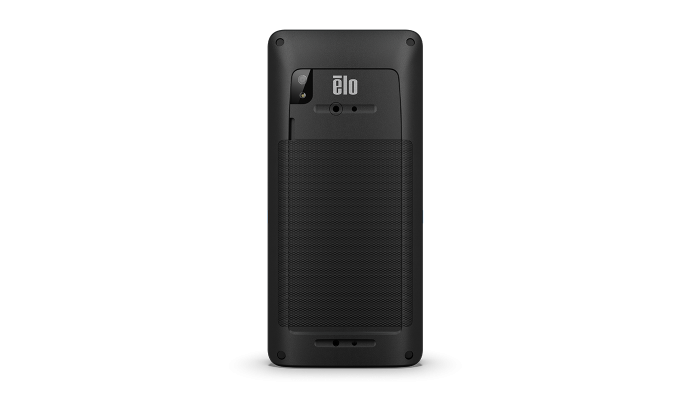

Camera
8MP Auto-Focus with Flash LED and Flashlight (Torch)

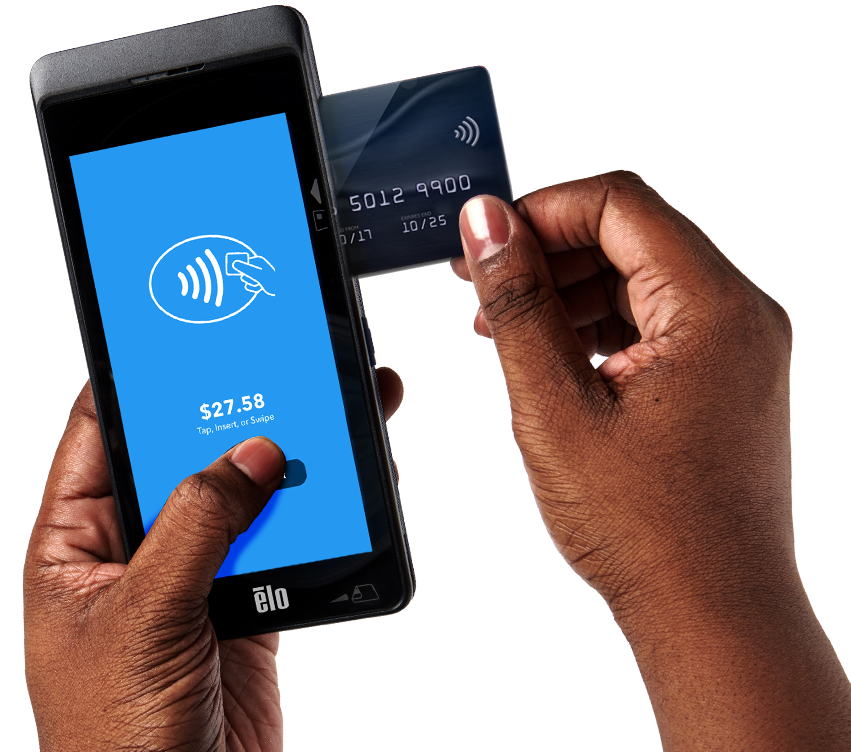

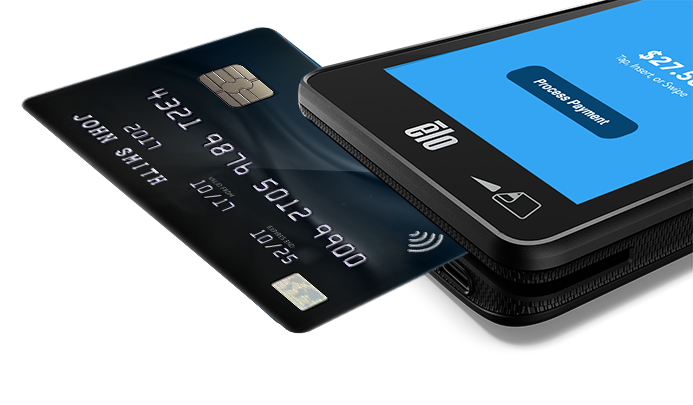

Payment
EMV Contactless ISO 14443-A/B, MiFare, ISO-18092
EMV Chip Card Reader (chip and pin-on-glass)
3-track MSR ISO 7810/7811
Certifications
PCI-PTS 6.0
EMV L1 & L2
Visa PayWave
Mastercard PayPass
Amex ExpressPay
Discover D-PAS
Mastercard TQM
Apple Pay™
Google Pay™
Samsung Pay™

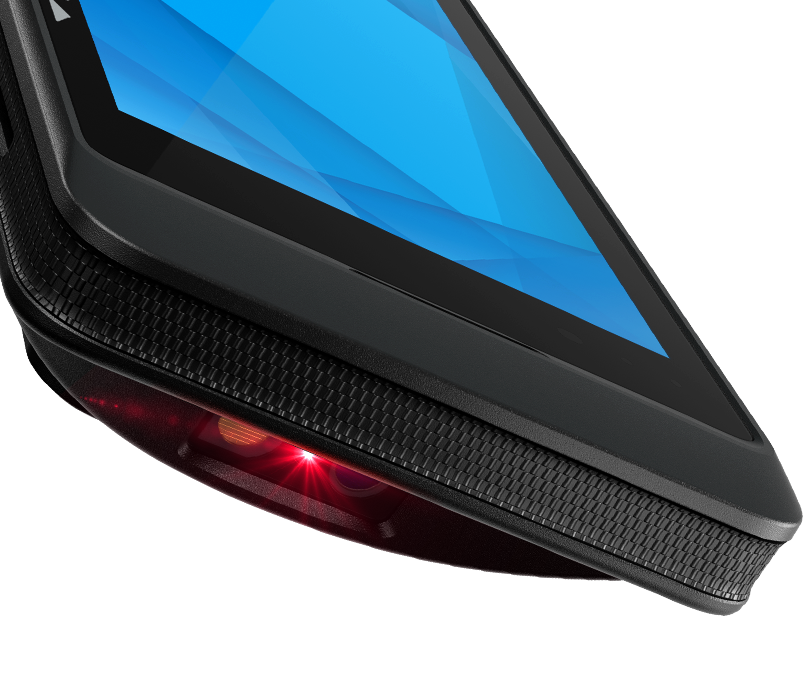

Barcode Scanner
SE4720 scan engine (1D/2D Imager)*
*on M60S/M60SC models only
Wireless
802.11a/b/g/n/ac with 2×2 MU-MIMO
Bluetooth
Bluetooth 5.0
LED
1x combination Green/Amber LED for battery/charging status
1x combination Blue/Red user programmable LED
Keyboard
On screen keyboard
Audio
Microphone
1W Front facing speaker
USB-C headset support
Buttons
Left and Right Programmable buttons
Left and Right BCR trigger buttons (for M60S/M60SC BCR SKUs only)
Power Button
Dimensions
M60/M60C: 7.32″ x 3.40″ x 0.77″ / 186 mm x 86.4 mm x 19.5 mm
M60S/M60SC: 7.32″ x 3.40″ x 1.27″ / 186 mm x 86.4 mm x 32.3 mm
Shipping Box Dimensions
M60/M60C: 8.86″ x 5.70″ x 2.95″ / 225 mm x145 mm x 75 mm
M60S/M60SC: 8.86″ x 5.70″ x 3.82″ / 225 mm x 145 mm x 97 mm
Weight (Unpackaged)
M60: 0.79 lbs / 362 g
M60C: 0.82 lbs / 370 g
M60S: 0.87 lbs / 396 g
M60SC: 0.89 lbs / 403 g
Weight (Packaged)
M60: 1.61 lbs / 730 g
M60C: 1.63 lbs / 740 g
M60S: 1.74 lbs / 789 g
M60SC: 1.75 lbs / 795 g
Operating Temperature
0°C to 50°C / 32°F to 122°F
Storage Temperature
-30°C to 60°C / -22°F to 140°F
Humidity
5% to 95% non-condensing
Regulatory approvals and declarations
UL, FCC (US) – Class B
cUL, IC (Canada)
CB (International safety)
CE (Europe) – Class B
RCM (Australia)
China RoHS
ESD
Class C: 8kV contact, 15kV air
Drop Rating
Multiple 1m drops
Tumble Rating
200 tumbles, 1.6ft./0.5m per IEC 60068-2-32
Warranty
1-year
Extended Service Options
3 year warranty coverage + ADP – Elo P/N: E672040
5 year warranty coverage + ADP – Elo P/N: E672239
1 year warranty coverage + AUR + ADP – Elo P/N: E894512
3 year warranty coverage + AUR + ADP – Elo P/N: E672440
5 year warranty coverage + AUR + ADP – Elo P/N: E672646
3 year warranty coverage + ADP + OS 360 – Elo P/N: E893726
5 year warranty coverage + ADP + OS 360 – Elo P/N: E893926
3 year warranty coverage + AUR + ADP + OS 360 – Elo P/N: E894122
5 year warranty coverage + AUR + ADP + OS 360 – Elo P/N: E894322
3 year OS 360 – Elo P/N: E873133
5 year OS 360 – Elo P/N: E873326
OS Support
Complimentary security updates provided for 3 months
Optional extended coverage available with Elo OS 360 package
Sealability
IP54 per IEC standard 60529
What’s in the Box
Elo M60 Pay
USB Type C Charger with Qualcomm Quick Charge 4.0
Quick Install Guide
Expansion Options
MicroSD up to 32GB SDHC and up to 256 GB SDXC
Option to support 1x nano-SAM card via a Micro SD slot.

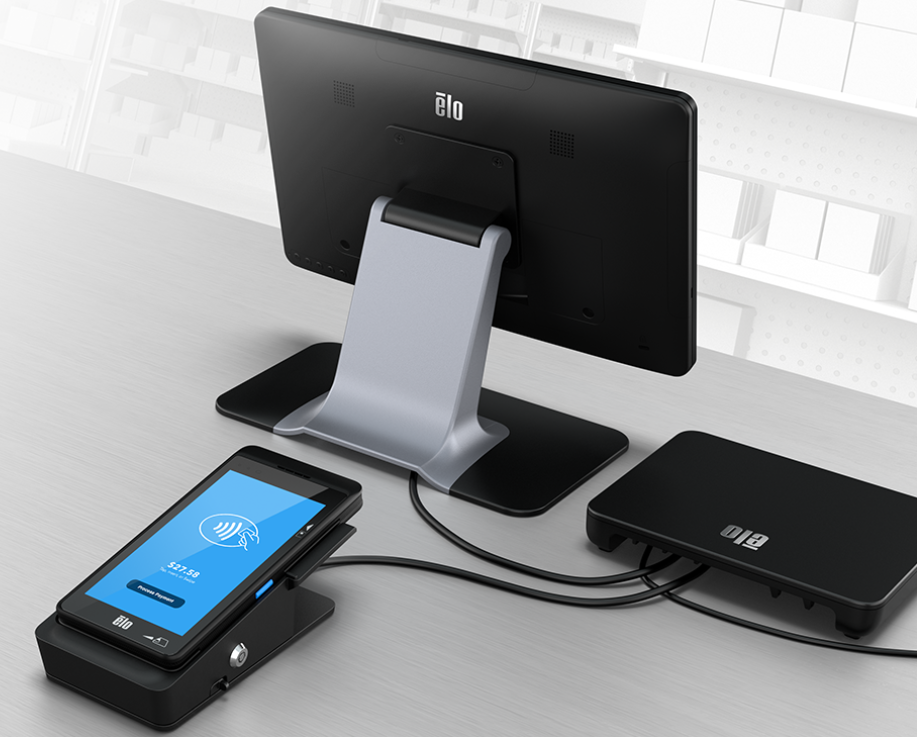

Optional Accessories
EM10 Expansion Module – Elo P/N: E863687
DS11 Docking Station – Elo P/N: E392249
DC11 4 Slot Device Charger – Elo P/N: E392443
HS11 Hand Strap – Elo P/N: E498250
