Part Number(s)
Main display:
10-inch, Standard Model, Black – E389883
10-inch, Standard Model, White – E411266 (MTO)
10-inch, Value Model, Black – E390647
10-inch, Value Model, White – E411643 (MTO)
15-inch, Standard Model, Black – E390075
15-inch, Standard Model, White – E412033 (MTO)
15-inch, Value Model, Black – E391032
15-inch, Value Model, White – E412421 (MTO)

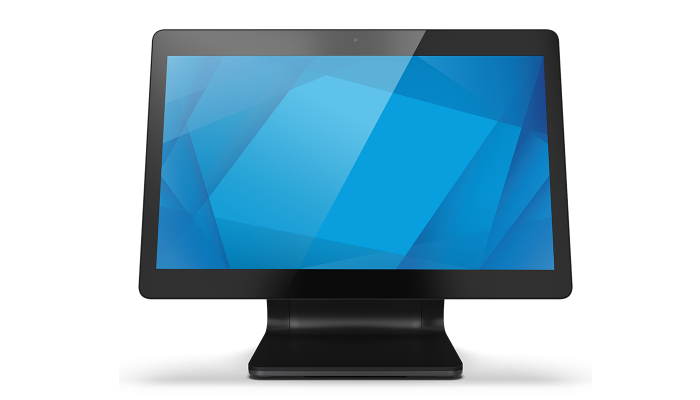

Stand:
Z20 POS Stand – E809321

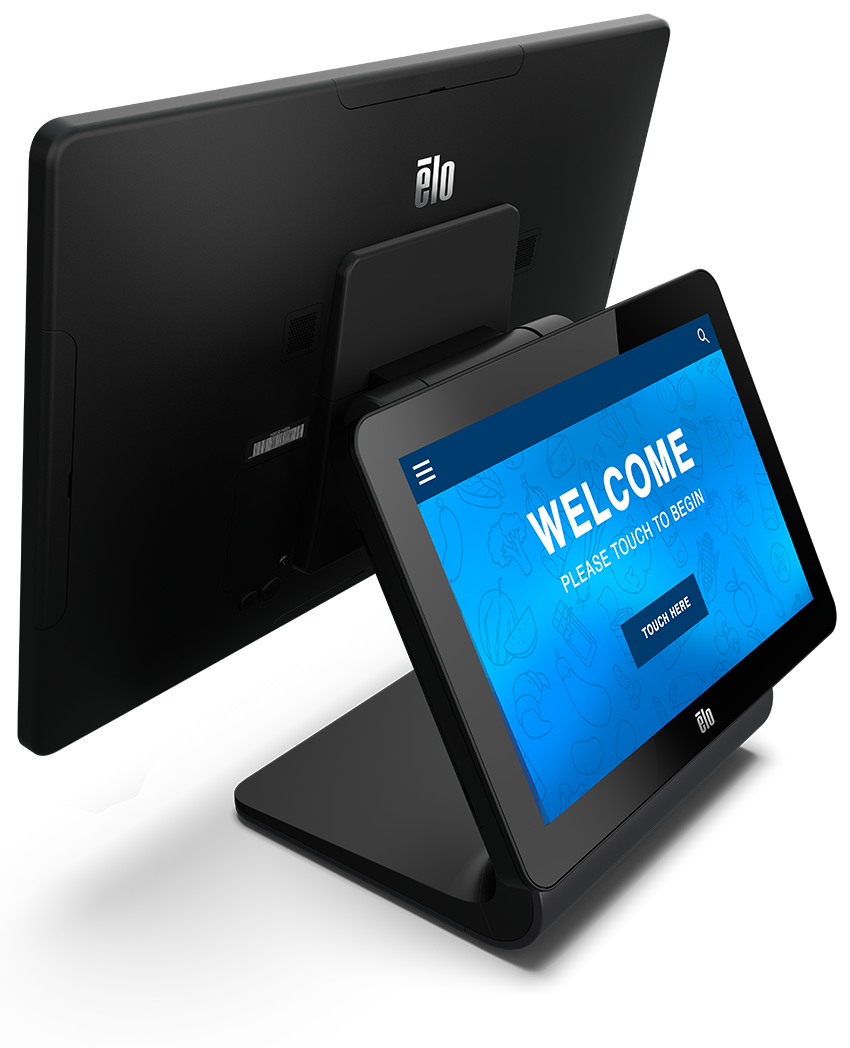

Customer-facing display:
1002L – E155834 and E324341
1302L – E683595 and E683787
1502L – E125496
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Processor
Standard Model: Qualcomm Snapdragon SDA660
Value Model: Rockchip RK3399
Memory (RAM)
4GB
Storage
Standard Model: 64GB
Value Model: 32GB
OS
Android 10 with Google Play Services and EloView content deployment and management
Diagonal Size
10.1” diagonal, Active matrix TFT LCD (LED) or 15.6” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
10″: 8.54″ x 5.34″ / 217 mm x 136 mm
15″: 13.55″ x 7.62″ / 344 mm x 194 mm
Resolution
10″ Standard Model: 1920 x 1200 @ 60Hz
10″ Value Model: 1280 x 800 @ 60Hz
15″: 1920 x 1080 @ 60Hz
Number of Colors
8-bit (16.7 million)
Brightness (Typical)
10″ Standard Model: LCD Panel: 450 nits, TouchPro PCAP: 387 nits
10″ Value Model: LCD Panel: 300 nits, TouchPro PCAP: 250 nits
15″ Standard Model: LCD Panel: 300 nits, TouchPro PCAP: 258 nits
15″ Value Model: LCD Panel: 250 nits, TouchPro PCAP: 215 nits
Response Time-total (typical)
25 msec
Contrast Ratio
10″ Standard Models: 900:1
10″ Value Models: 800:1
15″: 700:1
Viewing Angle
10″: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
15″ Standard Model: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
15″ Value Model: Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
I/O Ports
I-Series 4
USB 3.0 support (900mA)
USB-C output – When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details.
Micro SD slot
GPIO
RJ45 Ethernet LAN (Gigabit)
DC input

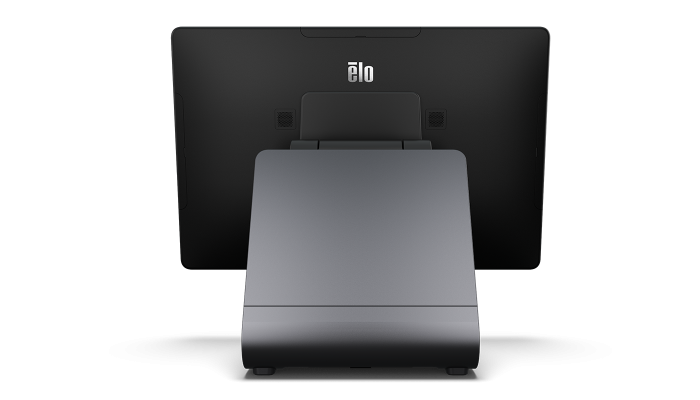

Z20 POS Stand
DC input
4 x USB-A 3.0 Port (900mA)
RJ12 (serial/cash drawer) 12/24V – User will need to select the mode
RJ45 Ethernet LAN (Gigabit) – Ethernet upload and download speeds will decrease to ~250Mbps when using the CFD
USB-C output – CFD (DisplayPort, Touch and Power Deliver up to 27W) – USB speeds will be reduced to 2.0 speeds when DP video is being output.
Display Head Connection
DC Jack for Power
USB-C for Data to the Z20 Stand IO Hub
Peripheral Mounting
4x micro-USB 2.0 Elo Edge Connect ports
Support for 1.2A on one port and 500mA for the remaining three ports
Webcam
Standard Model: 8MP, Max Resolution: 1920×1080 30fps, Auto Focus, Focus Range: >10cm
Value Model: 5MP, Max Resolution: 1920×1080 30fps, Auto Focus
Wireless
802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports
Standard Model: 2x built-in Digital Microphones
Value Model: 1x built-in Analog Microphone
Speakers
Standard Model: 2x 0.8W
Value Model: 2x 2W
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
power adapter (included in accessory box)
Power Consumption (Typical)
10″ Standard Model:
On: 8.5W
Off: 0.4W
Sleep: 4.5W
10″ Value Model:
On: 7.2W
Off: 0.4W
Sleep: 3.4W
15″ Standard Model:
On: 11.0W
Off: 0.4W
Sleep: 4.4W
15″ Value Model:
On: 10.0W
Off: 0.4W
Sleep: 3.4W
Power Over Ethernet (PoE)
Supported via Elo PoE Device PN: E413396
Reference the I-Series 4.0 user guide for details.
Dimensions
10″: 10.1″ x 6.8″ x 0.9″ / 252.9 mm x 169.0 mm x 22.1 mm
15″ Standard Model: 14.87″ x 9.8″ x 0.9″ / 377.7 mm x 249.7 mm x 22.3 mm
15″ Value Model: 15.3″ x 9.8″ x 0.9″ / 389.7 mm x 249.7 mm x 22.3 mm
Shipping Box Dimensions
10″ Standard Model: 12.4″ x 5.9″ x 8.8″ / 310 mm x 145 mm x 220 mm
10″ Value Model: 12.4″ x 5.5″ x 9.0″ / 315 mm x 140 mm x 228 mm
15″ Standard Model: 17.7″ x 6.5″ x 12.2″ / 450 mm x 165 mm x 310 mm
15″ Value Model: 18.3″ x 6.3″ x 13.0″ / 465 mm x 160 mm x 330 mm
Weight (Unpackaged)
10″ Standard Model: 2.0 lbs / 0.9 kg
10″ Value Model: 1.8 lbs / 0.8 kg
15″ Standard Model: 3.9 lbs / 1.8 kg
15″ Value Model: 3.5 lbs / 1.6 kg
Weight (Packaged)
10″ Standard Model: 4.5 lbs / 2.1 kg
10″ Value Model: 4.9 lbs / 2.2 kg
15″ Standard Model: 7.8 lbs / 3.5 kg
15″ Value Model: 7.2 lbs / 3.3 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%
Regulatory approvals and declarations
UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)
Supported Countries
Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock
lithium coin cell battery

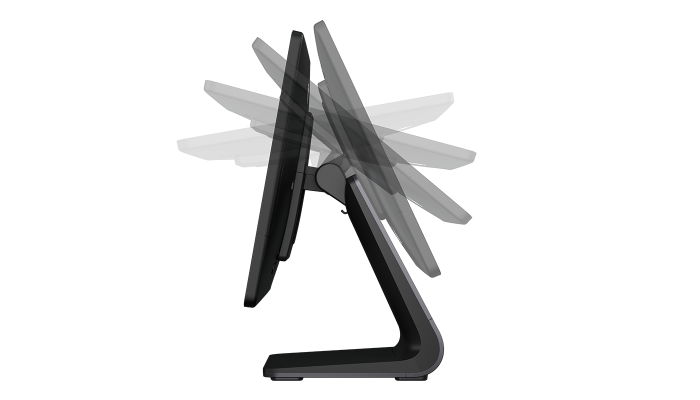

Hinge Life Rating
5000 cycles
MTBF
50,000 hours demonstrated
Mounting Options
VESA 75mm
Warranty
2-year
Extended Service Options
I-Series 4:
3 year OS 360 – Elo P/N: E873133
5 year OS 360 – Elo P/N: E873326
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
3 year Warranty Coverage + ADP + OS 360 – Elo P/N: E130908
4 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131109
5 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131294
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
2 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132245
3 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132432
4 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132627
5 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132811
Z20 POS Stand:
3 year warranty coverage – Elo P/N: E375367
4 year warranty coverage – Elo P/N: E375573
5 year warranty coverage – Elo P/N: E375771
2 year warranty coverage + AUR – Elo P/N: E375970
3 year warranty coverage + AUR – Elo P/N: E376169
4 year warranty coverage + AUR – Elo P/N: E376362
5 year warranty coverage + AUR – Elo P/N: E376547
OS Support
Complimentary security updates provided for the first three months.
Optional extended coverage available with Elo OS 360 package.
Sealability
Touchscreen sealed to LCD
What’s in the Box
I-Series 4
North American Power Cable
European Power Cable
Power Brick
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)
Tie wrap
Z20 POS Stand
8 x M4x10 Flat-head Screw (in bag “A”)
2 x M4x6 Pan-head Screw (in bag “B”)
Screw-height tool
Installation Guide
0.3m USB-C to USB-C cable (To provide USB and Video signals to the CFD)
150W Power Brick
North American Power Cable
European Power Cable
Tie wrap
VESA Cover, Bottom, 15”
VESA Cover, Top, 15”
VESA Cover, Bottom, 10”
VESA Cover, Top, 10”
Base Plate
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (SE4720) – Elo P/N: E384627
2D Barcode Scanner (SE4107) – Elo P/N: E245047
POE Module Kit – Elo P/N: E413396
Status Light (Micro-USB Connectivity) – Elo P/N: E644767
Temperature Sensor Pro – Elo P/N: E534879
3D Camera – Elo P/N: E134699
Webcam – Elo P/N: E201494
Expansion Module – Elo P/N: E809509
Stands, Mounts & Kits
65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
90W Replacement Cable Kit (NA & EU power cables and 90W power brick) – Elo P/N: E413579
