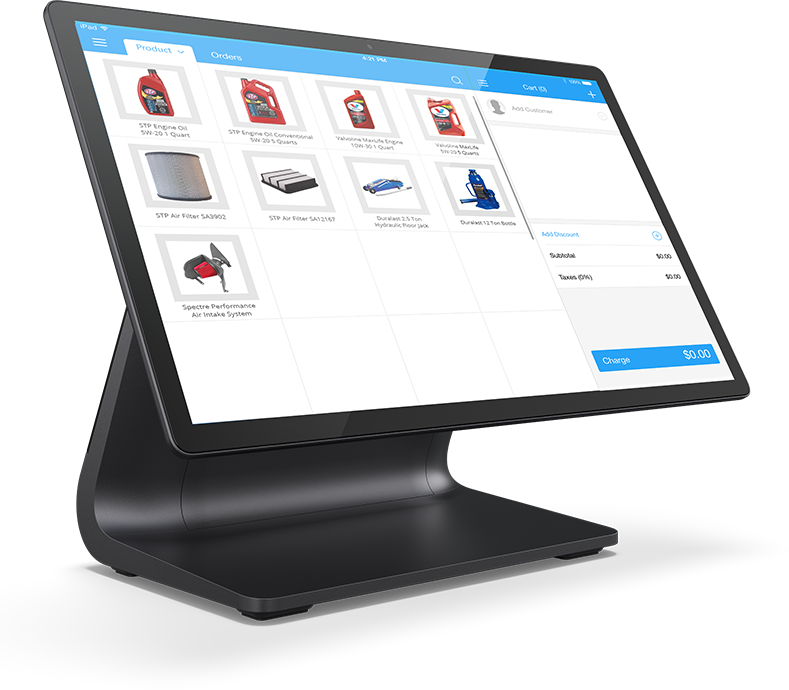

Part Number(s)
EloPOS Z30 Standard Model with CFD: E482347
EloPOS Z30 Value Model with CFD: E482746
EloPOS Z30 Standard Model without CFD: E392186
EloPOS Z30 Value Model without CFD: E392977
Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Processor
Standard Model: Qualcomm Snapdragon SDA660
Value Model: Rockchip RK3399
Memory (RAM)
4GB
Storage
Standard Model: 64GB
Value Model: 32GB
OS
Android 10 with Google Play Services and EloView content deployment and management
Diagonal Size
15.6” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
13.55″ x 7.62″ / 344 mm x 194 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
8-bit (16.7 million)
Brightness (typical)
Standard Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits
Value Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits
Response Time-total (typical)
20 ms
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)
RJ12 (Serial/cash drawer)* 12/24V – User will need to select mode
Powered USB 24V
USB-C output – CFD (DisplayPort, touch and power delivery up to 27W)

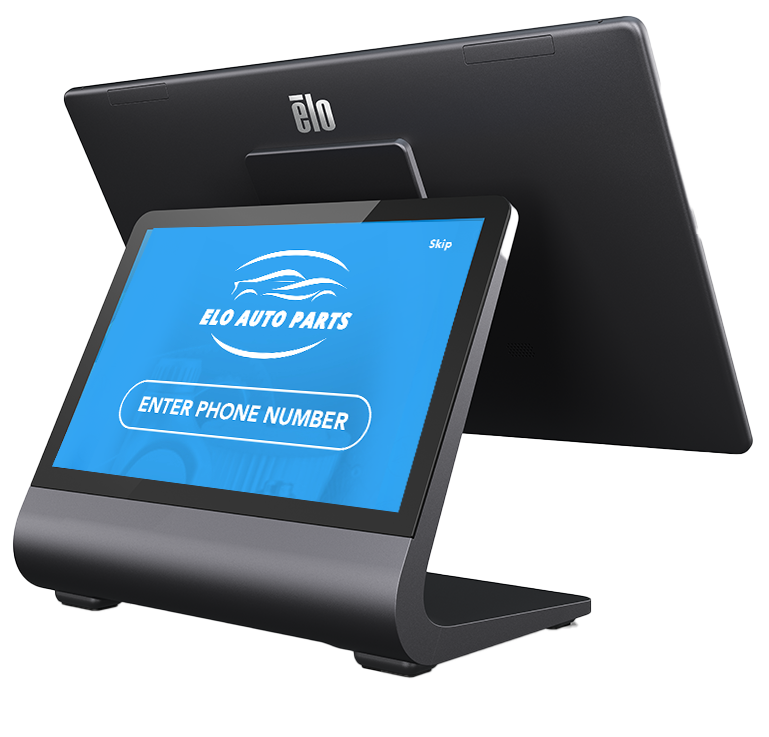

Integrated Customer-Facing Display
Size -10.1 inch
Resolution – 1280 x 800 @ 60 Hz
Active Display Area (H x V) – 8.7″ x 5.3″ / 219.96 mm x 135.6 mm
Viewing Angle – Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Brightness – LCD Panel: 400 nits, TouchPro PCAP: 344 nits
Number of Colors – 8-bit (16.7M)
Touch Technology – TouchPro PCAP
Sealing – Touchscreen sealed to LCD
Number of Touches – 10
Webcam
5MP
Max Resolution: 1920×1080 30fps
Auto Focus
Wireless
802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports
Standard Model: 2x built-in Digital Microphones
Value Model: 1x built-in Analog Microphone
Speakers
Standard Model: 2x 0.7W
Value Model: 2x 1W
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical)
Standard Model wIth CFD:
On: 24W
Off: < 0.5W
Sleep: 4.7W
Value Model wIth CFD:
On: 17.84W
Off: < 0.7W
Sleep: 12.9W
Standard Model wIthout CFD:
On: 20W
Off: < 0.5W
Sleep: 4.7W
Value Model wIthout CFD:
On: 11.8W
Off: < 0.7W
Sleep: 7.66W
Dimensions
11.6″ x 7.4″ x 14.6″ / 294 mm x 188 mm x 371 mm
Shipping Box Dimensions
18.22″ x 11.22″ x 17.64″ / 463 mm x 285 x 448 mm
Weight (Unpackaged)
16.5 lbs / 7.5 kg
Weight (Packaged)
21.6 lbs / 9.8 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%
Regulatory approvals and declarations
UL/cUL (US)
FCC (US) Class B (CFD Version is Class A only)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)
Supported Countries
Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock
lithium coin cell battery
MTBF
50,000 hours demonstrated
Mounting Options
VESA 75mm
Warranty
2-year
Extended Service Options
I-Series 4 Slate
3 year OS 360 – Elo P/N: E873133
5 year OS 360 – Elo P/N: E873326
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
3 year Warranty Coverage + ADP + OS 360 – Elo P/N: E130908
4 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131109
5 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131294
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
2 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132245
3 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132432
4 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132627
5 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132811
Z30 POS Stand
3 year warranty coverage – Elo P/N: E375367
4 year warranty coverage – Elo P/N: E375573
5 year warranty coverage – Elo P/N: E375771
2 year warranty coverage + AUR – Elo P/N: E375970
3 year warranty coverage + AUR – Elo P/N: E376169
4 year warranty coverage + AUR – Elo P/N: E376362
5 year warranty coverage + AUR – Elo P/N: E376547
OS Support
Complimentary security updates provided for the first three months.
Optional extended coverage available with Elo OS 360 package.
Sealability
Standard Model: Touchscreen optically bonded to LCD
Value Model: Touchscreen sealed to LCD
What’s in the Box
EloPOS Z30
North American Power Cable
European Power Cable
Quick Install Guide
150W Power Brick
2 x Zip Ties
1 x M4x8 mm screw in a plastic bag
1 x M3x6 mm screw in a plastic bag
Base Plate – for mounting to a countertop
Stands, Mounts & Kits
0702L – Elo P/N: E796382
1002L – Elo P/N: E155834
1002L – Elo P/N: E324341
1302L – Elo P/N: E683595
1502L – Elo P/N: E125496
